TK1241 - 1GT101DC Aftermarket Hall Effect Sensor GT101

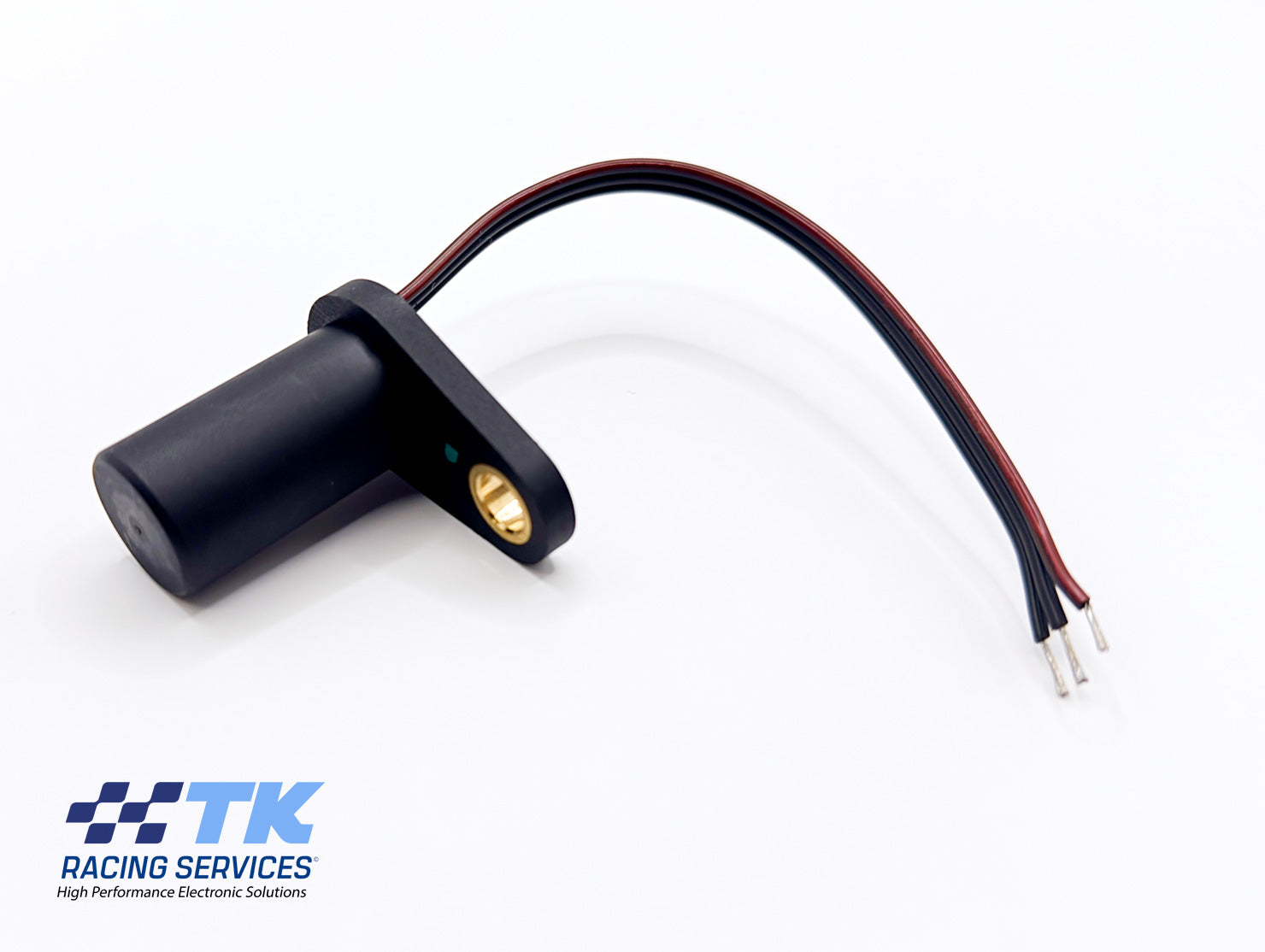

1GT101DC style Hall Effect Geartooth Sensor with Flange Mount.
Perfect for the following sensing applications: Geartooth Sensor, Camshaft Position, Crankshaft Position, Vehicle Speed, Transmission, Traction Control.

Unterminated Cable Length 140mm

Sealed in probe-style package for physical protection and cost-effective installation. Sensor electronically self-adjusts to slight variations in runout and temperature, often simplifying installation and maintenance. Circuit senses movement of targets in camshaft and crankshaft speed and position, transmission speed, and tachometer applications, as well as anti-skid and traction control applications.

Digital current sinking output (open collector)
Operating Temperature Max 150°C
Operating Voltage 4.5 to 26.5 Vdc
Sensing air gap up to 2mm [0.080 in]

Wire - Function
BLACK - GND
WHITE - SIGNAL
RED - 12V

We can supply this sensor terminated to your own requirements. Available connectors and pinouts are available on request, drop us a message, we will be happy to help.
