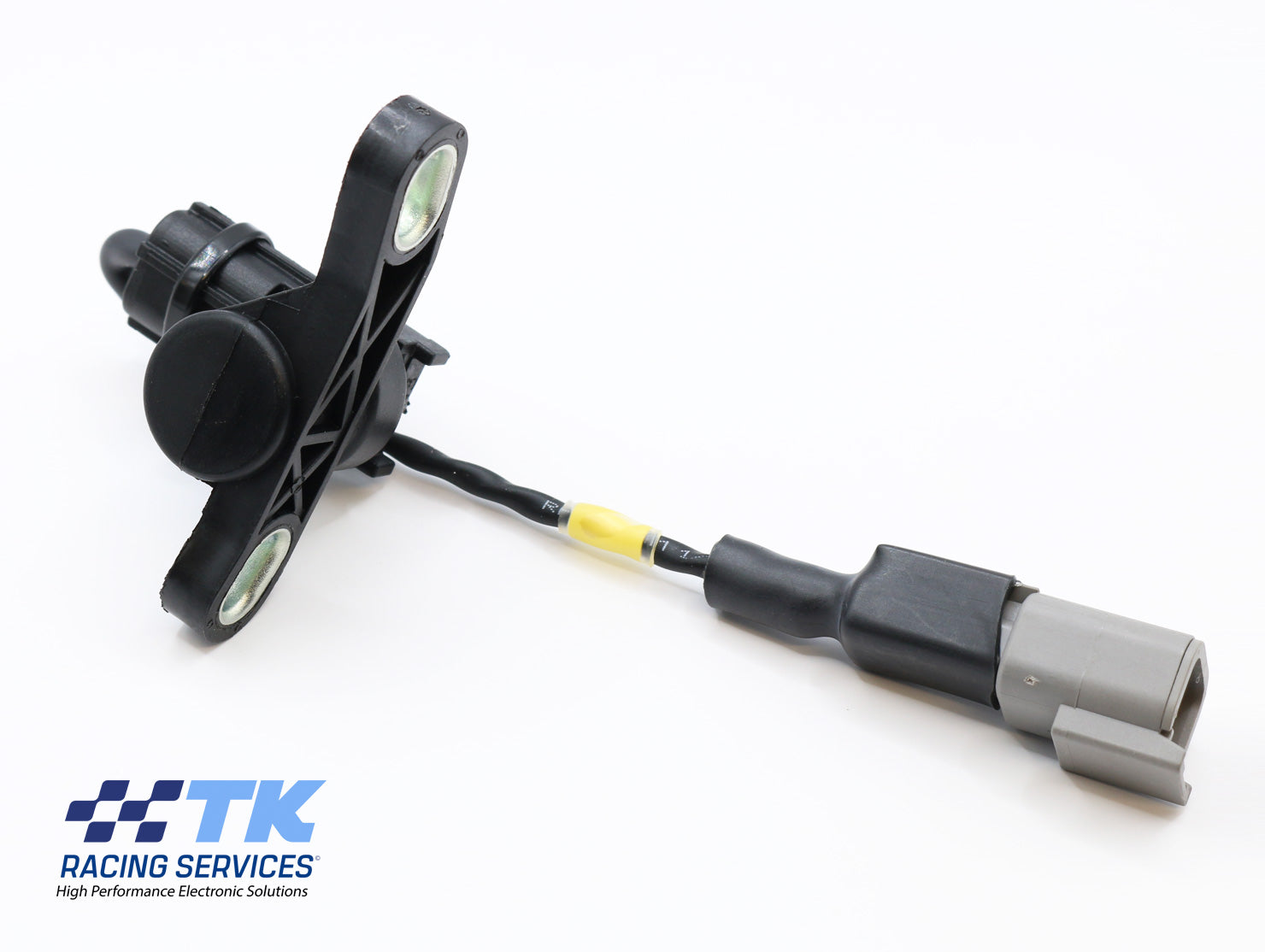

TK1215 - Ford Duratec 1318773 Crank Sensor Assy - Potted with DTM Connector

We use either Ford Part - 1318773 OR Bosch Part 0 986 280 479 for this sensor. A Harsh Environment (HE) Crank Position Sensor.

Potted and fitted with a 2 way DTM04-2P female housing and terminated with gold plated pins. Constructed using Military grade 55A spec wire and covered with Industry grade DR25 sleeving. We also fit GTB-50 spiral wrap which is a PTFE wrap rated to 260deg C for extra cable protection.

Cable Length 150mm - Measured from centre of DTM to exit of sensor.

Pinout
Pin - Function
1 - SIG
2 - GND

Other connectors and pinout options are available, drop us a message, we will be happy to help.
