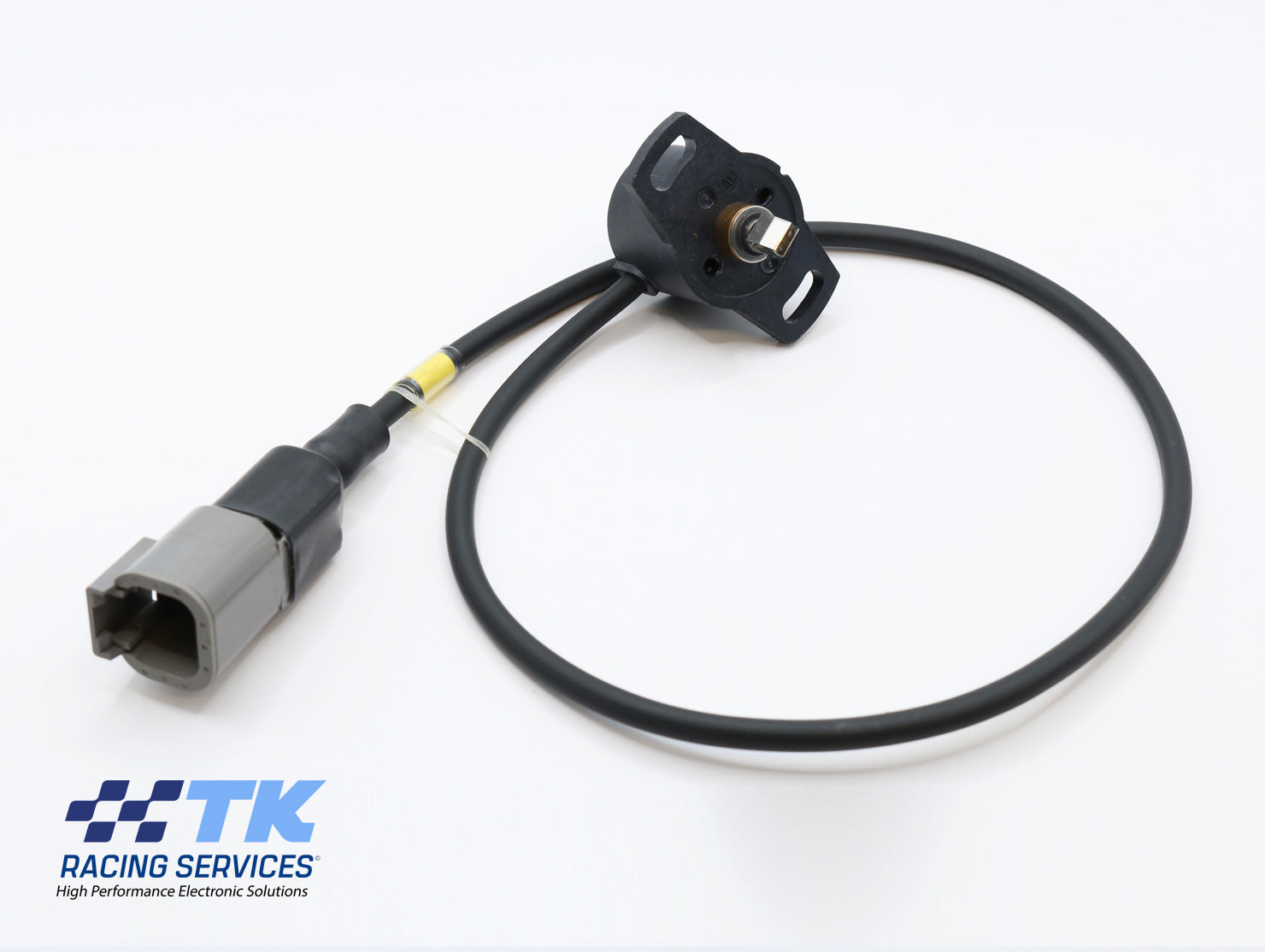

TK1209 - SADEV ST82-14 SL75-14 LW Gear Potentiometer - DTM Version

SADEV ST82-14/SL75-14 LW Gear Potentiometer - DTM Connector Version. Designed and proven to meet the rigorous demands of the motorsport industry.
F0089047-B Gear Pot (Potentiometer) to suit many of the Tatuus range of chassis/gearbox.
Fits, amongst others, the following gearbox's - SADEV ST82-14/SL75-14 LW

Our sensors are built in house for harsh environments using only using premium grade components. Fitted with a 4 way DTM04-4P female housing and terminated with gold plated pins.
Cable Length 480mm - Measured from exit of sensor to rear of connector.

5v DC
0.5 to 4.5V Output

Pin - Function
1 - 5V
2 - GND
3 - SIG
4 - N/C

Other lengths, connectors and pinout options are available, drop us a message, we will be happy to help.
