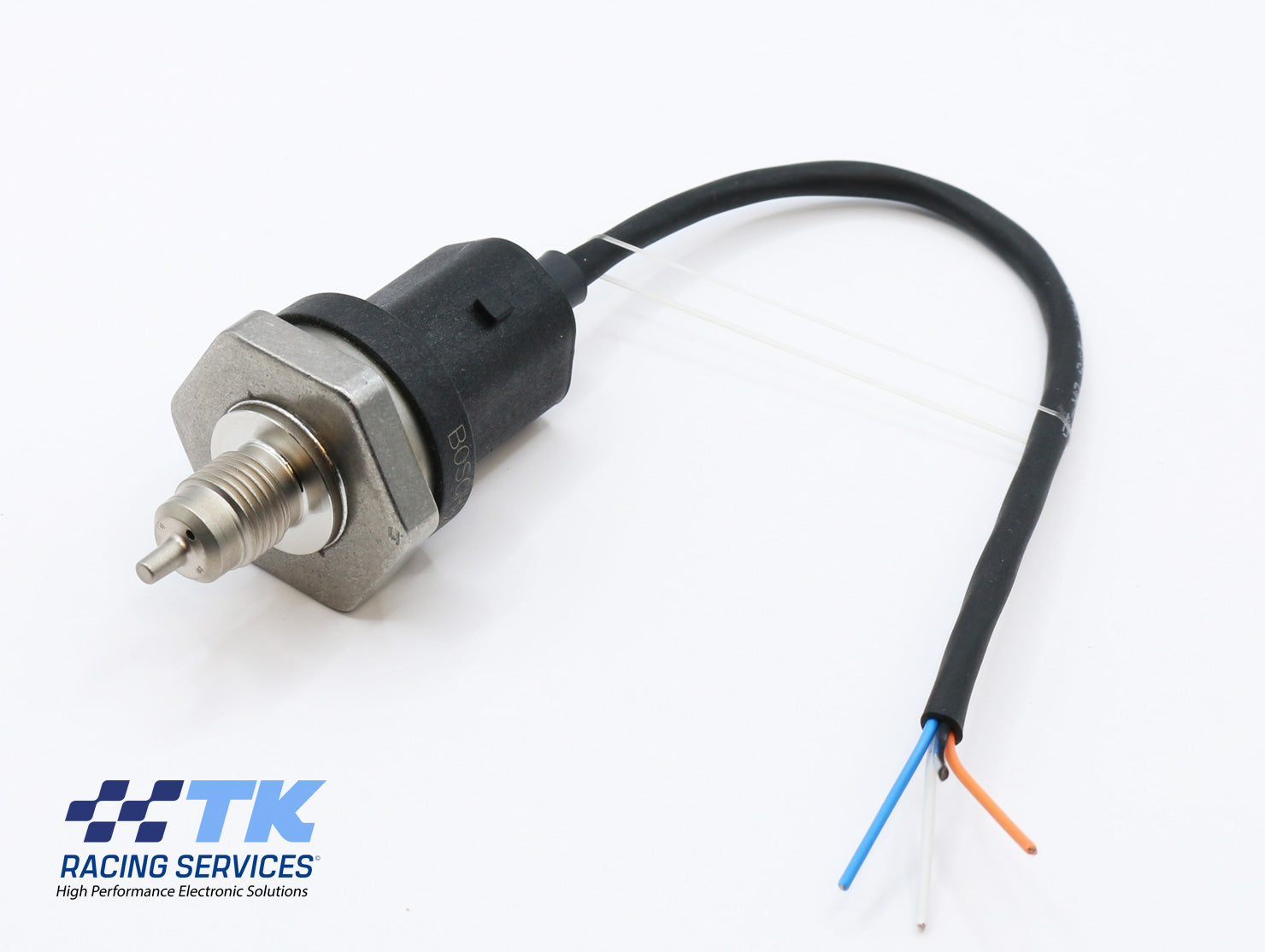

TK1207 - Genuine Bosch 0 261 544 01F Pressure & Temp Sensor - Potted Unterminated

Potted with 22AWG wires ready for your choice of connector.
The Bosch 0 261 544 01F is a compact, combined pressure and temperature sensor for liquids, measuring up to 10 bar pressure and -40°C to 140°C temperature, ideal for engine oil, fuel (gas/diesel/E85) and coolant measurement in performance or aftermarket applications. Supercedes the 0 261 230 482 sensor. It combines two sensors into one unit, measuring pressure and temperature in a single port, simplifying installations.
Provides both pressure signal (analog) and NTC temperature output (resistance).
Designed and proven to meet the most rigorous demands of on-vehicle Temperature and Pressure measurement in the motorsport industry.

Combined Temperature and Pressure sensor. 2 Sensors in one!
0 to 10 bar (145psi) Pressure Sensor
-40 to 140 deg C Temperature Sensor
45degree cone seat, M10x1 fitting
Suitable for Diesel, Gasoline, Engine Oil, Transmission Oil, Fuel/Gas Diesel etc

Our sensors are built in house for harsh environments using only using premium grade components. Constructed using Military grade 55A spec wire and covered with Industry grade DR25 sleeving.

Wire - Function
WHITE - PRESS SIGNAL
ORANGE - 5V
BLACK - GND
BLUE - TEMP SIGNAL

Other lengths, connectors and pinout options are available, drop us a message, we will be happy to help.
