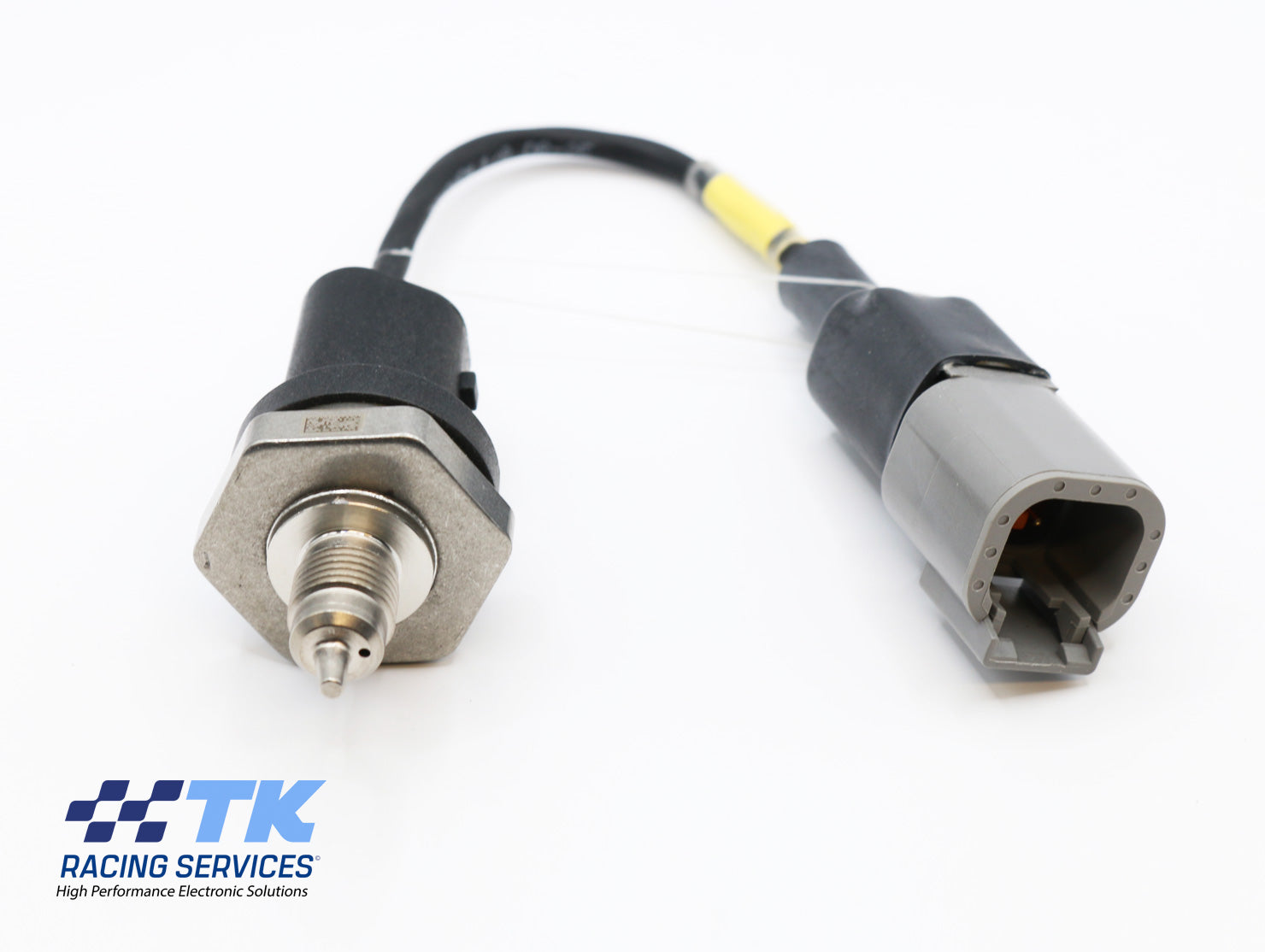

TK1206 - Genuine Bosch 0 261 544 01F Pressure & Temp Sensor - DTM Version

The Bosch 0 261 544 01F is a compact, combined pressure and temperature sensor for liquids, measuring up to 10 bar pressure and -40°C to 140°C temperature, ideal for engine oil, fuel (gas/diesel/E85) and coolant measurement in performance or aftermarket applications. Supercedes the 0 261 230 482 sensor. It combines two sensors into one unit, measuring pressure and temperature in a single port, simplifying installations.
Provides both pressure signal (analog) and NTC temperature output (resistance).
Designed and proven to meet the most rigorous demands of on-vehicle Temperature/Pressure measurement in the motorsport industry.

Combined Temperature and Pressure sensor. 2 Sensors in one!
0 to 10 bar (145psi) Pressure Sensor
-40 to 140 deg C Temperature Sensor
45degree cone seat, M10x1 fitting
Suitable for Diesel, Gasoline, Engine Oil, Transmission Oil, Fuel/Gas Diesel etc

Our sensors are built in house for harsh environments using only using premium grade components.
Constructed using Military grade 55A spec wire and covered with Industry grade DR25 sleeving.
Fitted with a 4 way DTM04-4P female housing and terminated with gold plated pins.
Cable Length 150mm - Measured from centre of DTM to exit of sensor.

Pin - Function
1 - PRESS SIGNAL
2 - 5V
3 - GND
4 - TEMP SIGNAL

Other lengths, connectors and pinout options are available, drop us a message, we will be happy to help.
