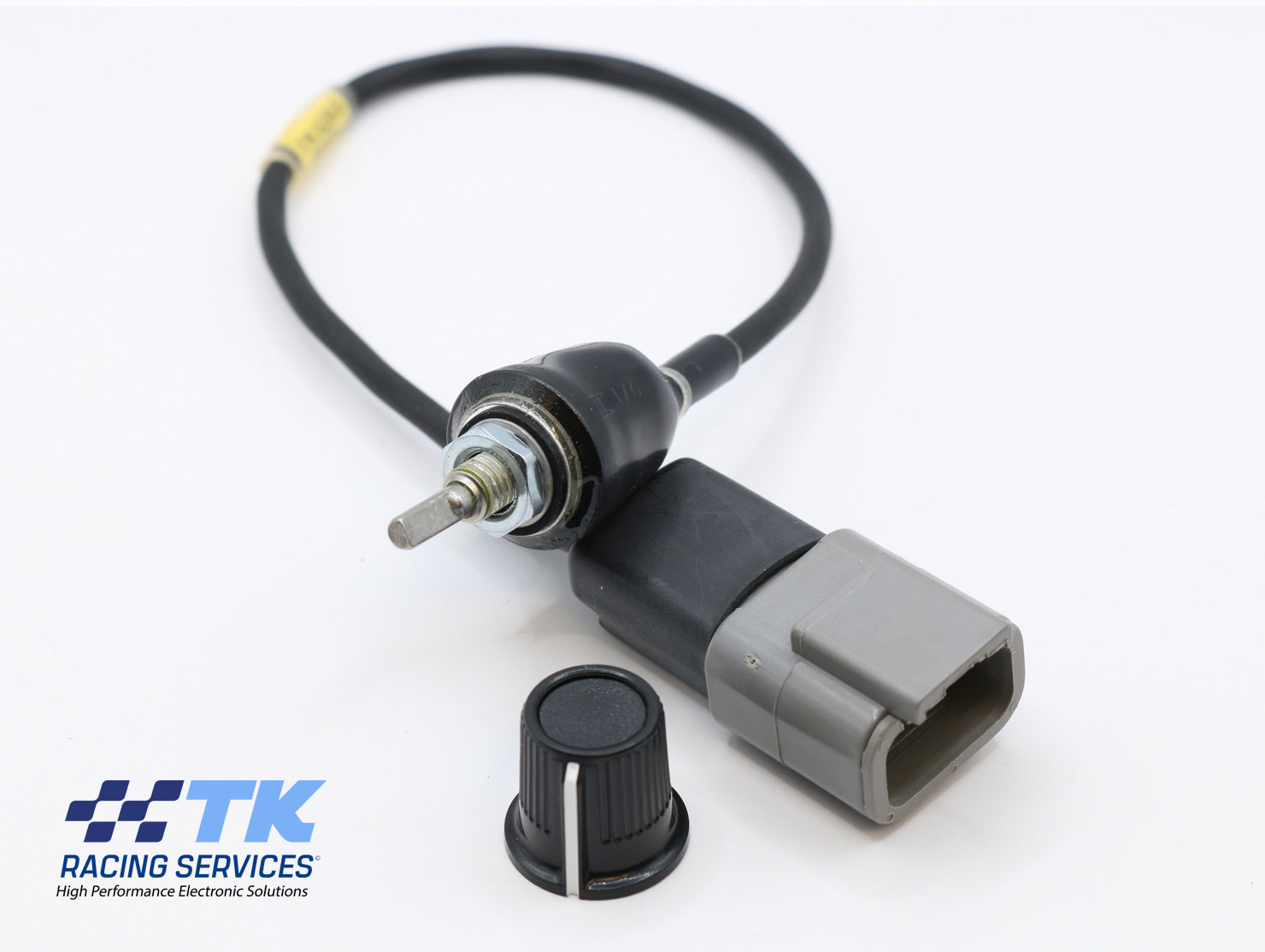

TK1203 - ECU MAP Boost & Power Control Rotary Potentiometer

Adjustable rotary 4 Position (adjustable) MAP/Power/Boost control potentiometer. With its small size, it can be mounted on a steering wheel or dashboard.
A user-adjustable knob, typically in a race car, that connects to the aftermarket Engine Control Unit (ECU) to fine-tune traction control settings on the fly, allowing drivers to alter traction slip percentage, launch control RPM, or boost levels by changing a variable resistance signal to the ECU.

Our switch looms are manufactured in house using only using premium grade components.
Fitted with a 3 way DTM04-3P female housing and terminated with gold plated pins. Over-sleeved with Raychem DR25 heat shrink sleeving for added cable protection. The switch is an ultra-reliable GRAYHILL type with a Raychem boot sealing the switch onto the loom
Cable Length 250mm - Measured from centre of DTM to exit of sensor.

IP67 for highest protection in harsh environments
Angle of Throw (°) 30
Standard Positions: 1 to 4
Adjustable stop (1-2, 1-3, 1-4)
Premium quality, economically priced
Rating (max): 200 mA
Depth Behind Panel: 9.01 mm

Pin - Function
1 - GND
2 - SIGNAL
3 - 5V

Other connectors and pinouts are available on request, drop us a message, we will be happy to help.
