TK1187 - Aftermarket 1GT101DC Wheelspeed Sensor GT101 - DTM Version

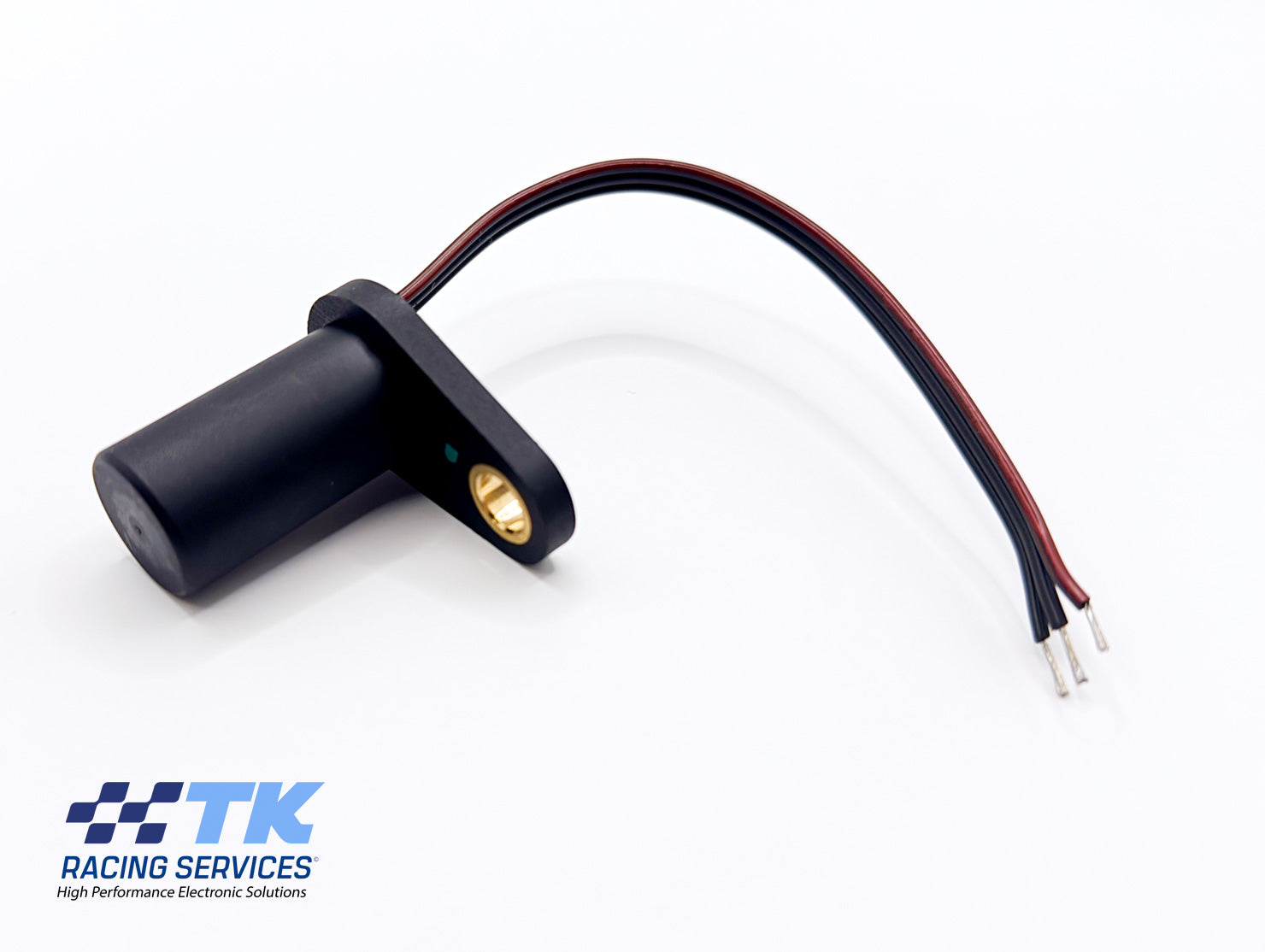

1GT101DC style Hall Effect Geartooth Sensor with Flange Mount.
Perfect for the following sensing applications:
Geartooth Sensor, Camshaft Position, Crankshaft Position, Vehicle Speed,  Transmission, Traction Control.

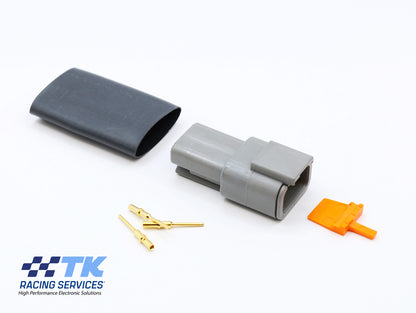

Fitted with a 3 way DTM04-3P female housing and terminated with gold plated pins. Over-sleeved with Raychem DR25 heat shrink tubing for added cable protection.
Cable Length 850mm - Measured from centre of DTM to exit of sensor.

Sealed in probe-style package for physical protection and cost-effective installation. Sensor electronically self-adjusts to slight variations in runout and temperature, often simplifying installation and maintenance. Circuit senses movement of targets in camshaft and crankshaft speed and position, transmission speed, and tachometer applications, as well as anti-skid and traction control applications.

Digital current sinking output (open collector)
Operating Temperature Max 150°C
Operating Voltage 4.5 to 26.5 Vdc
Sensing air gap up to 2mm [0.080 in]

Pin - Function
1 - GND
2 - SIGNAL
3 - 12V

Other connectors and pinouts are available on request, drop us a message, we will be happy to help.
