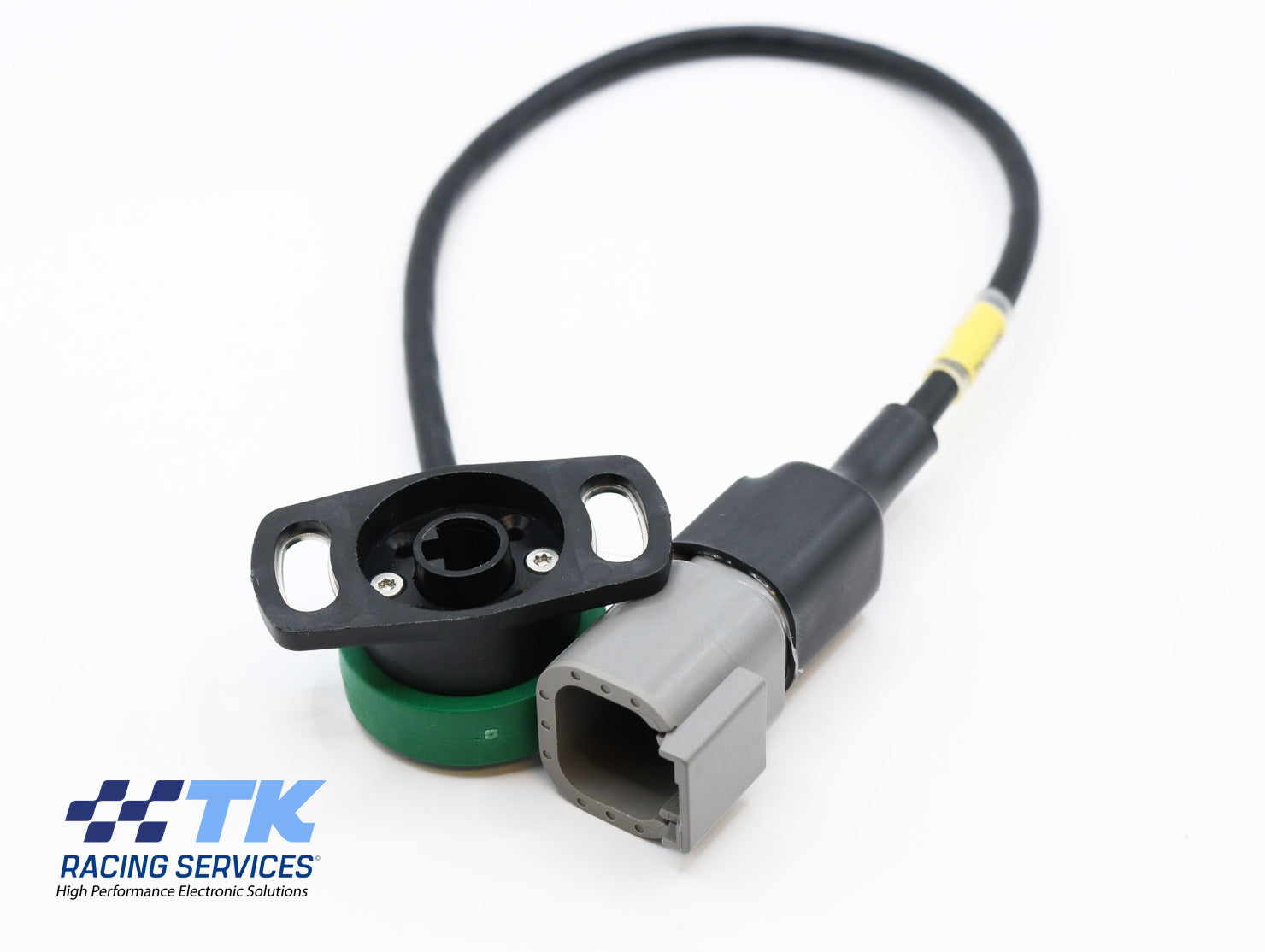

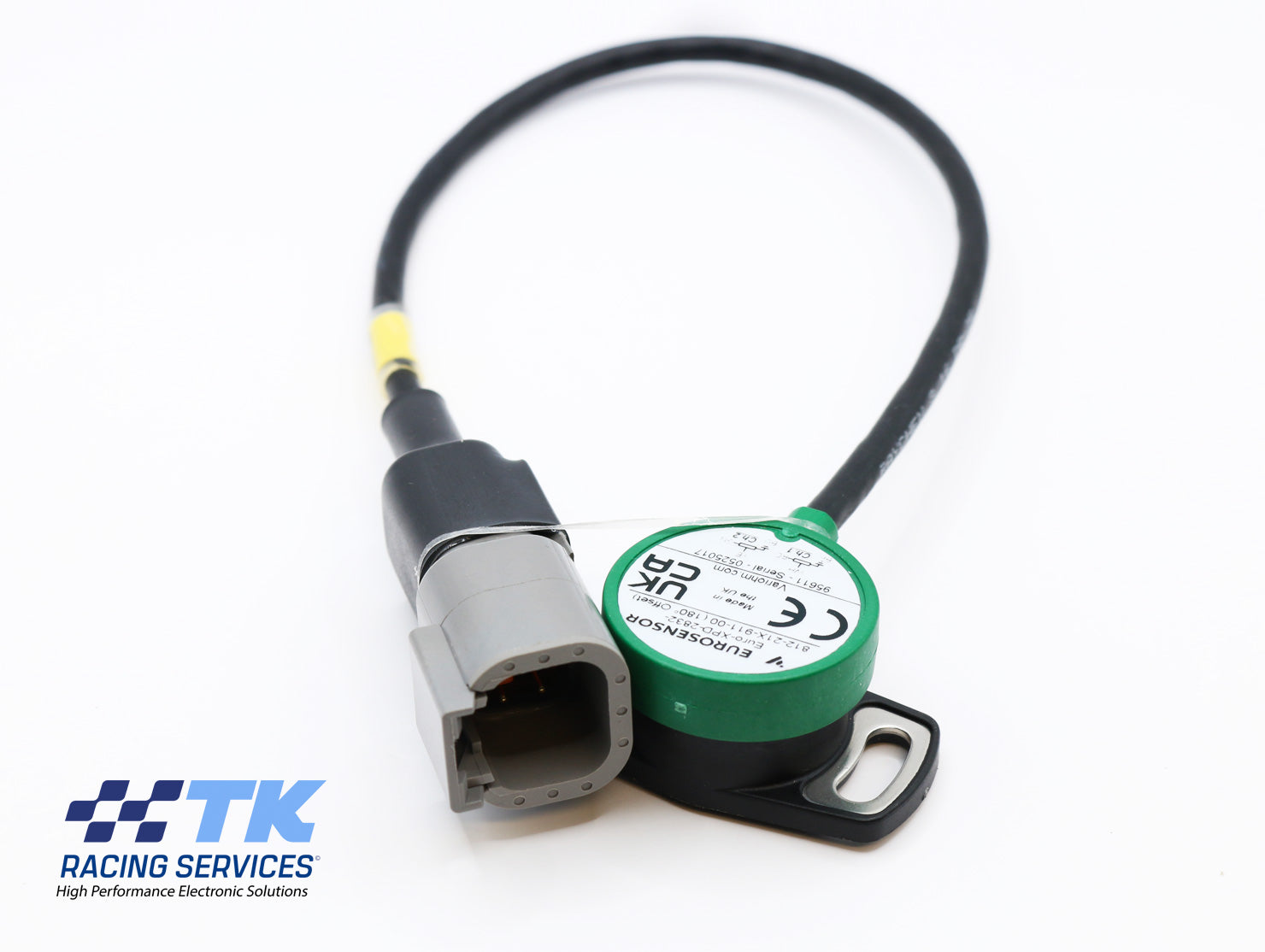

TK1186 - Variohm Euro XPD Dual Track TPS Sensor - Fitted with DTM Connector

Variohm XPD contactless dual output sensor. Programmed with 180° Offset to suit Jenvey Throttle Bodies.
This harsh environment sensor has been designed for electronic throttle applications where 2 signals are required. It fits on the right hand side of the throttle body and offers 2 signals, one at 0-5V and one at 5-0V

Fitted with a 4 way DTM04-4P female housing and terminated with gold plated pins.

Cable Length 270mm - Measured from centre of DTM to exit of sensor

Pinout
Pin 1 - 5V
Pin 2 - SIG 1
Pin 3 - SIG 2
Pin 4 - GND
