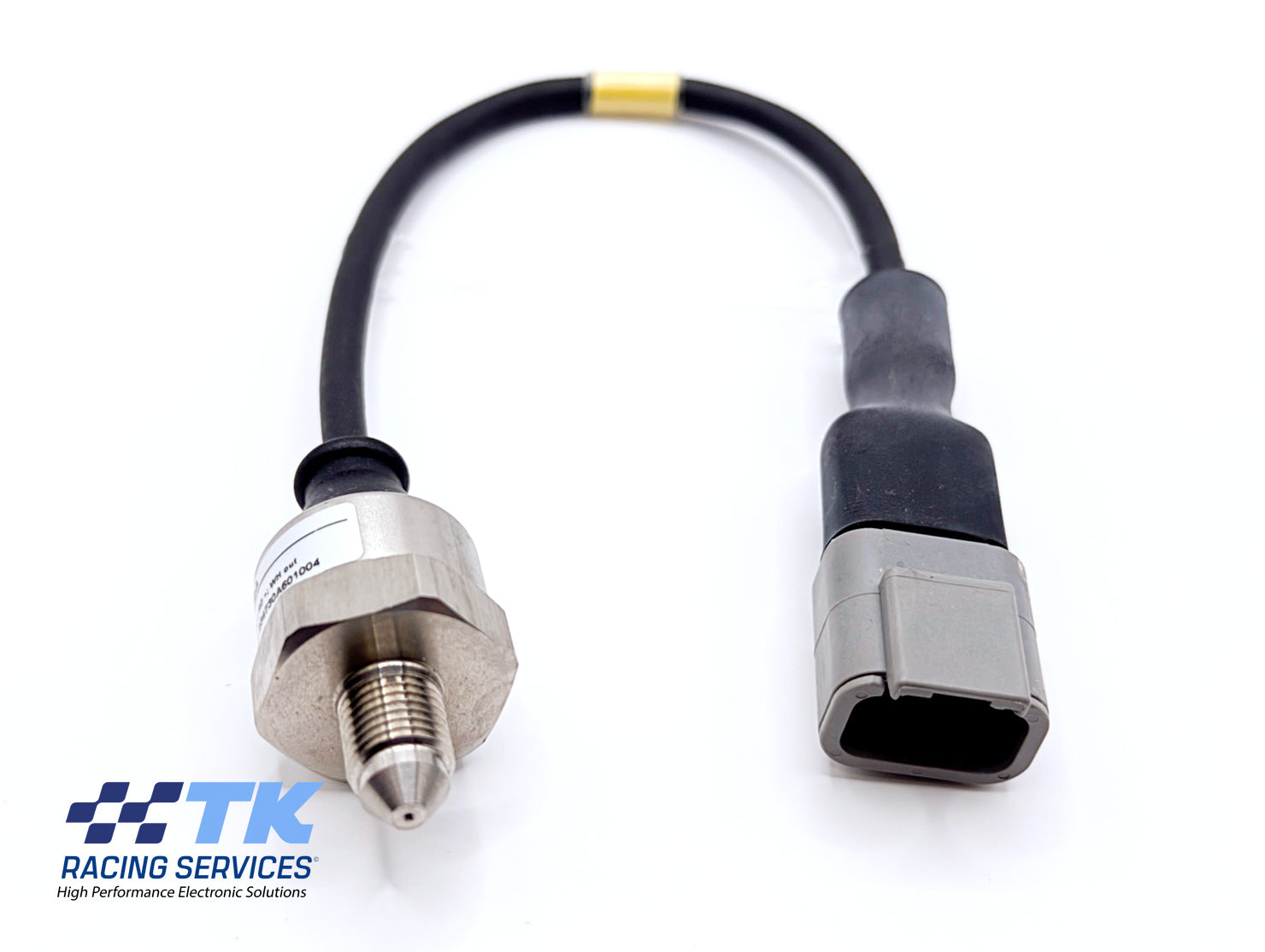

TK1184 - 2 Bar Absolute Crank Case & Water Pressure Sensor - DTM Version

Variohm EPT2100-H-00200-A-5-A

Designed and proven to meet the most rigorous demands of on-vehicle pressure measurement in the motorsport industry.
Fitted with a 3 way DTM04-3P female housing and terminated with gold plated pins.
Cable Length 150mm - Measured from centre of DTM to exit of sensor. Stainless housing.

2 Bar Absolute
5V Supply
0.5V to 4.5V Output
Dash 3 thread - 3/8"-24UNF (9.5mm)
Body Diameter - 21mm (at widest point)
Body Length - 21mm (not including sensor boot)

Pinout
Pin - Function
1 - GND
2 - SIGNAL
3 - 5V

Other lengths, connectors and pinout options are available, drop us a message, we will be happy to help.
