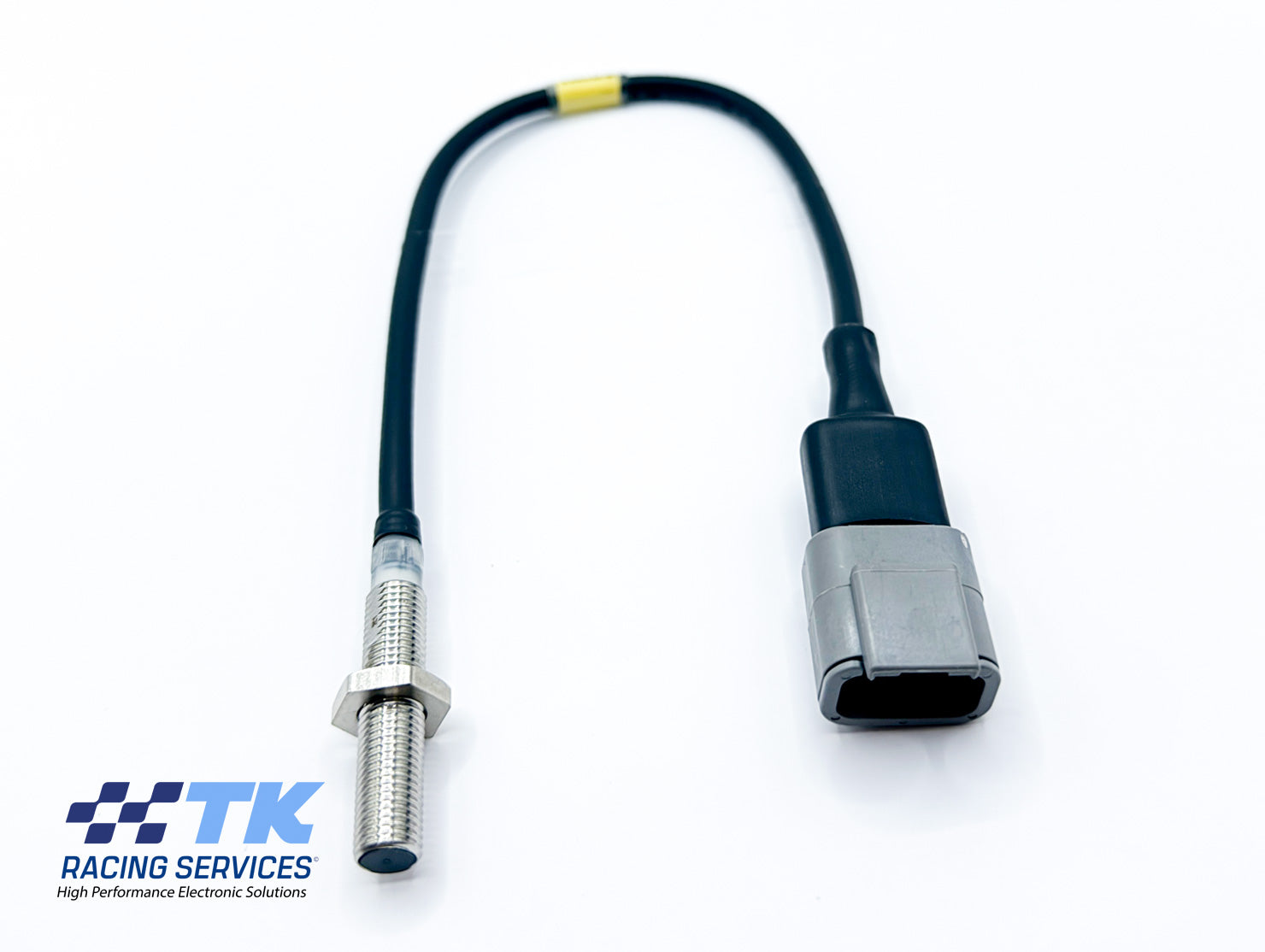

TK1170 - Wheelspeed Sensor 2mm Airgap - Fitted with DTM Connector - 250mm

Race proven speed sensor as used in race series such as the British F4, GB4 and GB3 Championships.
Fitted with a 3 way DTM04-3P female housing and terminated with gold plated pins. Over-sleeved with Polyolefin heat shrink tubing for added cable protection.
Cable Length 325mm - Measured from centre of DTM to exit of sensor. M8 Stainless housing. 2mm sensing distance. IP67 for highest protection in harsh environments
360º visible LED indicator.
12v DC 3-wire model - 10 to 32v DC
Normally Open (NO) model - NPN
Frequency Response 1,500 Hz

Pinout
Pin    Function
1        12V
2        SIGNAL
3        GND

Other connectors and pinouts are available on request, drop us a message, we will be happy to help.
