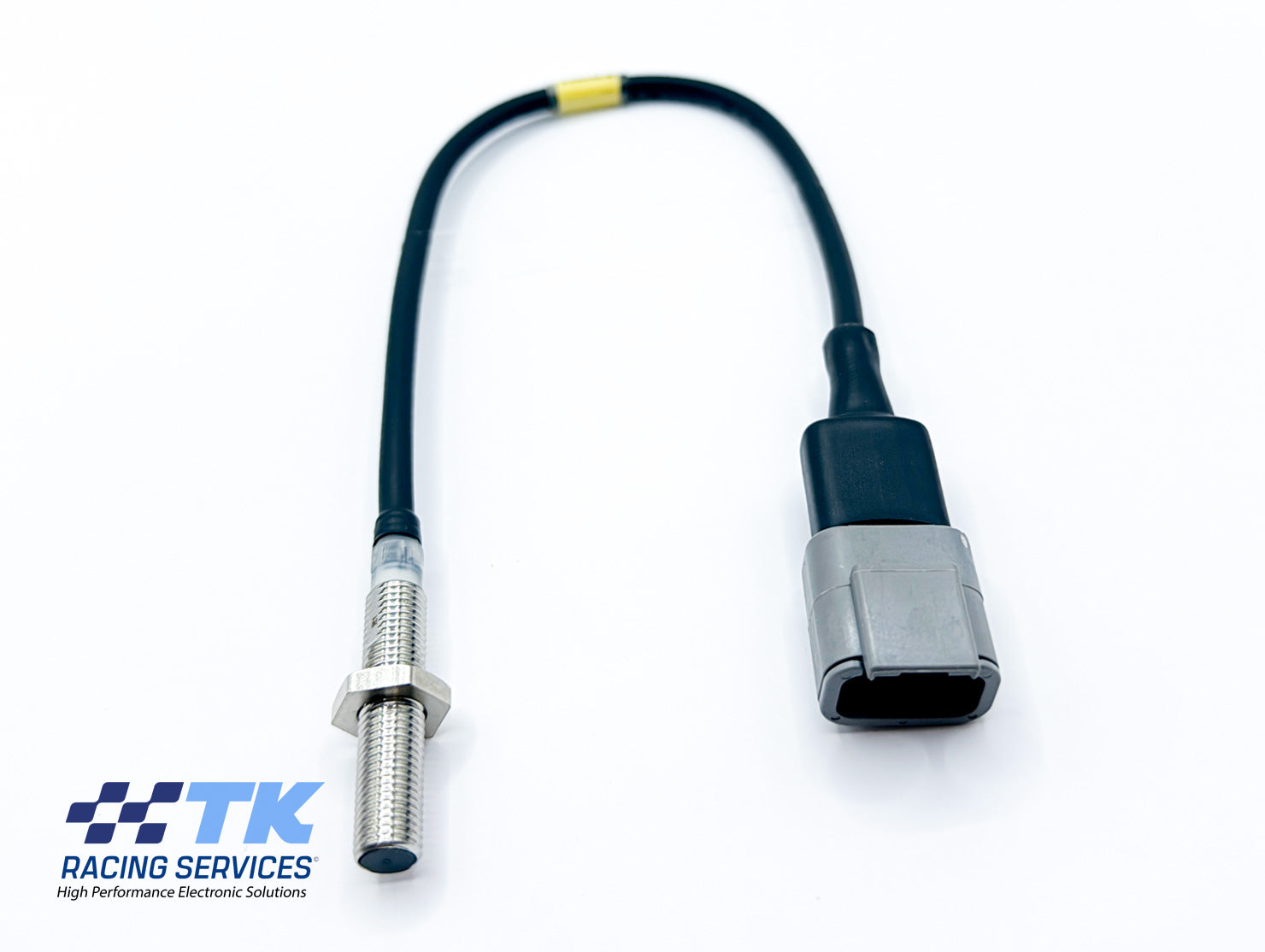

TK1170 Wheelspeed Sensor - 325mm Long - 2mm Sensing Distance

Proudly Manufactured in the UK
Pre-wired with 3 way DTM04-3P housing and terminated with with Gold Plated terminals
Cable Length 235mm - Measured from rear of DTM to exit of sensor
Overall Length 325mm - Measured from connecting face of DTM to tip of sensor
Designed, tested & built for use in harsh Motorsport environments
IP67 for highest protection in wet environments
360º visible LED indicator
12v DC 3-wire model - 10 to 32v DC
Normally Open (NO) model - NPN
Frequency Response 1,500 Hz
Up to 2mm sensing distance - Recommended gap setting 1mm
M8 Stainless housing
Added cable protection with Polyolefin heat shrink tubing
Other pinouts available on request, drop us a message...
Pinout
Pin    Function
1        12V
2        SIGNAL
3        GND
