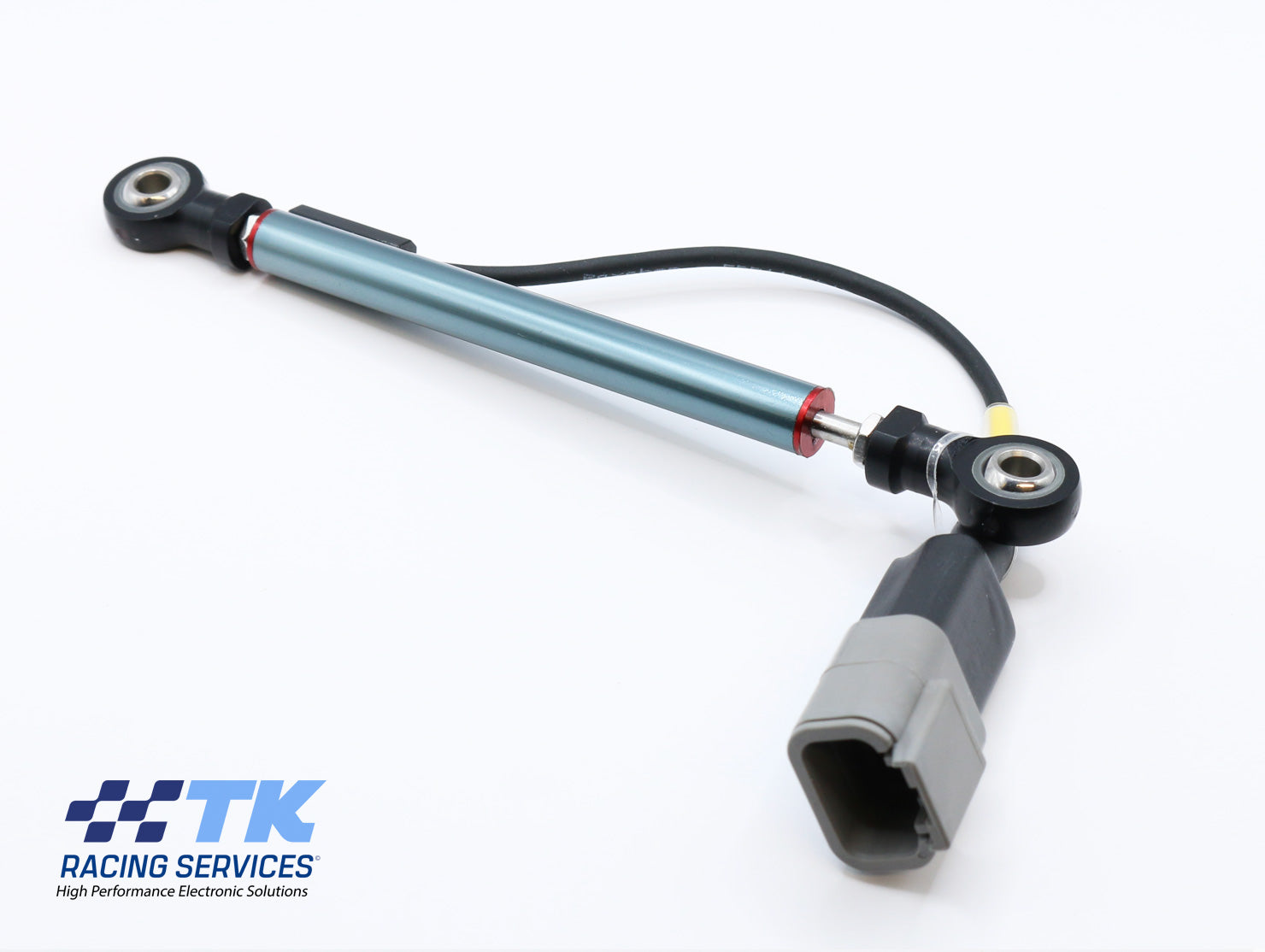

TK1169 - 50mm Linear Damper Pot fitted with DTM connector

Strainsense MS-94M linear potentiometers are designed to withstand the harsh environments of motorsport applications. Using proven 'Conductive Plastic' technology, the sensors offer high performance and reliability at operational temperatures up to +175°C. This rugged, extremely compact 9.4mm diameter housing is the 50mm stroke length version.
Sealed to IP67.

Forward facing cable exit.
M4 Plain thread.

Fitted with a 3 way DTM04-3P female housing and terminated with gold plated pins.
Cable Length 150mm - Measured from centre of DTM to exit of sensor.

5v DC
0 to 5V Output

Pinout
Pin - Function
1 - GND
2 - SIGNAL
3 - 5V

Other connectors and pinouts are available on request, drop us a message, we will be happy to help.
