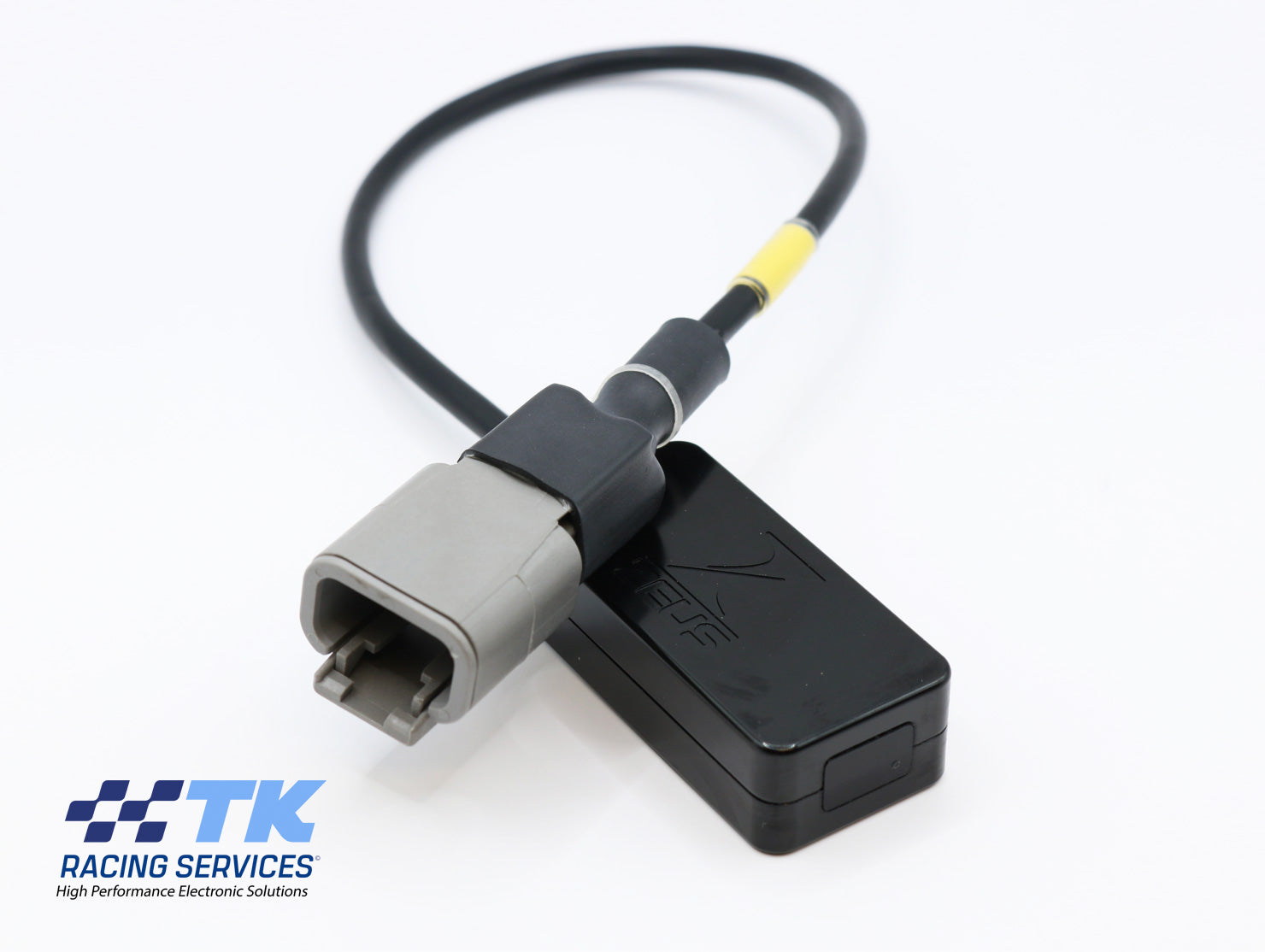

TK1164 - Cosworth Compatible Lap Beacon - DTM Version

Cosworth compatible Lap Beacon. This race proven receiver utilises all the permanent Cosworth Monster Beacon transmitters at all major UK circuits.
No adjustments are required to pick up from the UK circuit beacons. This receiver operates on Channel 0 and is fully compatible with the Cosworth/Pectel range of ECU and Data Logging Products.

Compatible with Tatuus chassis including T318 Formula Regional, T014 F4 Gen 1 and T421 F4 Gen 2.

Terminated with a 3 way DTM04-3P housing and fitted with Gold Plated terminals

Cable Length 300mm - Measured from centre of DTM to exit of sensor

Pinout - Wire Function
Pin 1 - 12V
Pin 2 - GND
Pin 3 - SIGNAL

The output at end of lap is a 5v pull down digital output.
