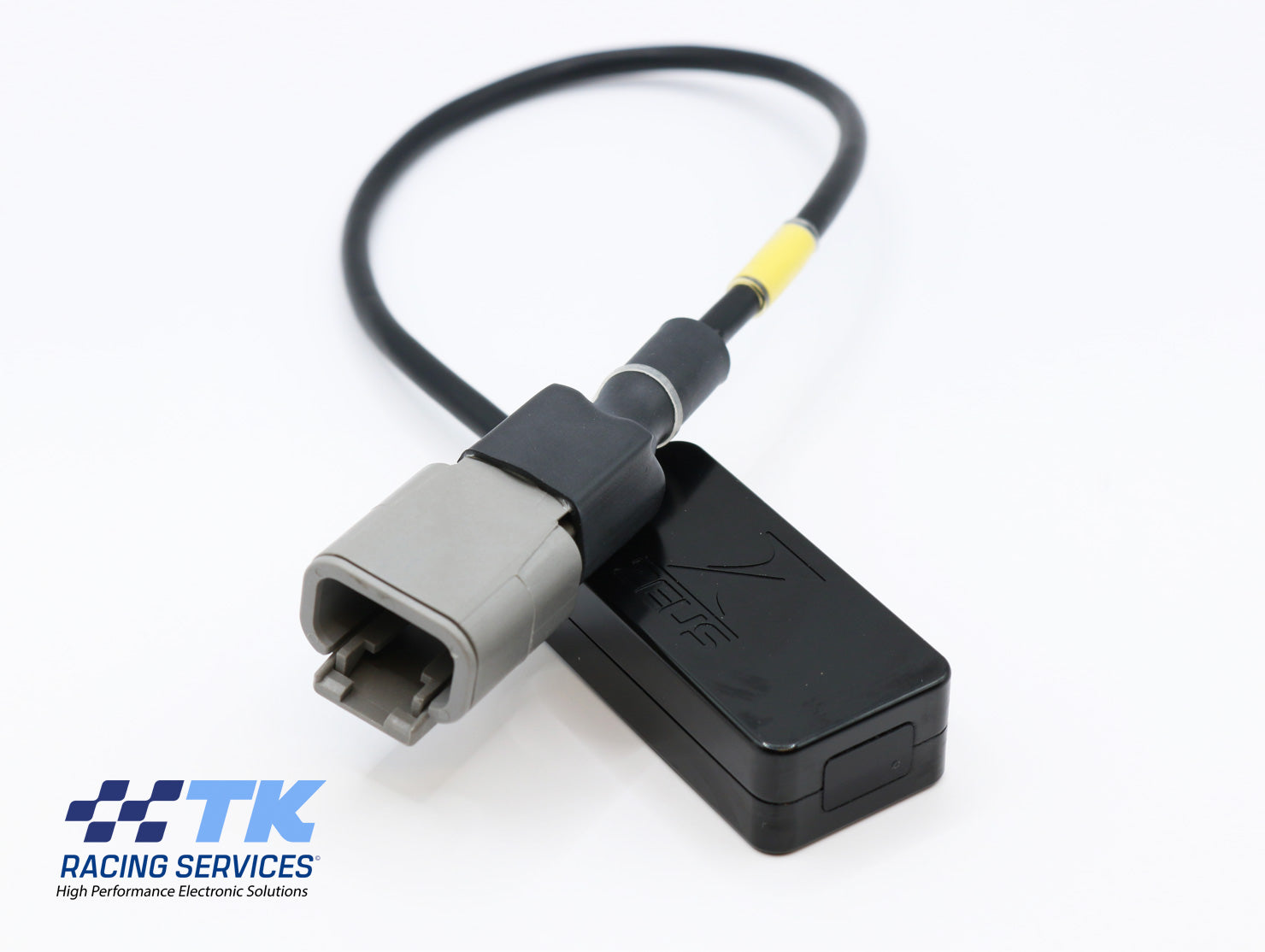

TK1163 - Cosworth Compatible Lap Beacon - DTM (Pin 1 - GND)

Cosworth compatible Lap Beacon. This race proven receiver utilises all the permanent Cosworth Monster Beacon transmitters at all major UK circuits.
No adjustments are required to pick up from the UK circuit beacons. This receiver operates on Channel 0 and is fully compatible with the Cosworth/Pectel range of ECU and Data Logging Products.

Terminated with a 3 way DTM04-3P housing and fitted with Gold Plated terminals

Cable Length 300mm - Measured from centre of DTM to exit of sensor

Pinout - Wire Function
Pin 1 - GND
Pin 2 - SIG
Pin 3 - 12V

The output at end of lap is a 5v pull down digital output.
