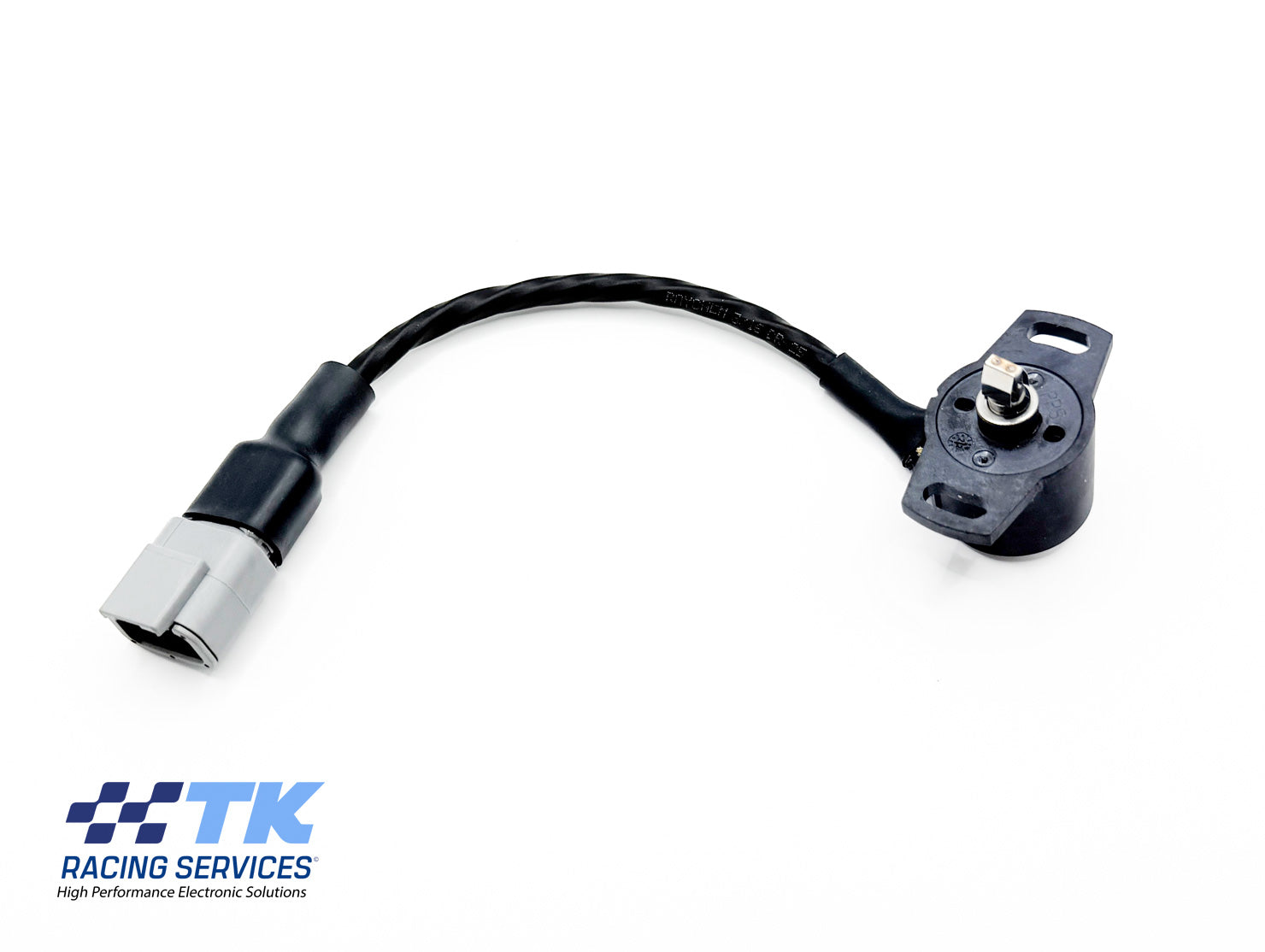

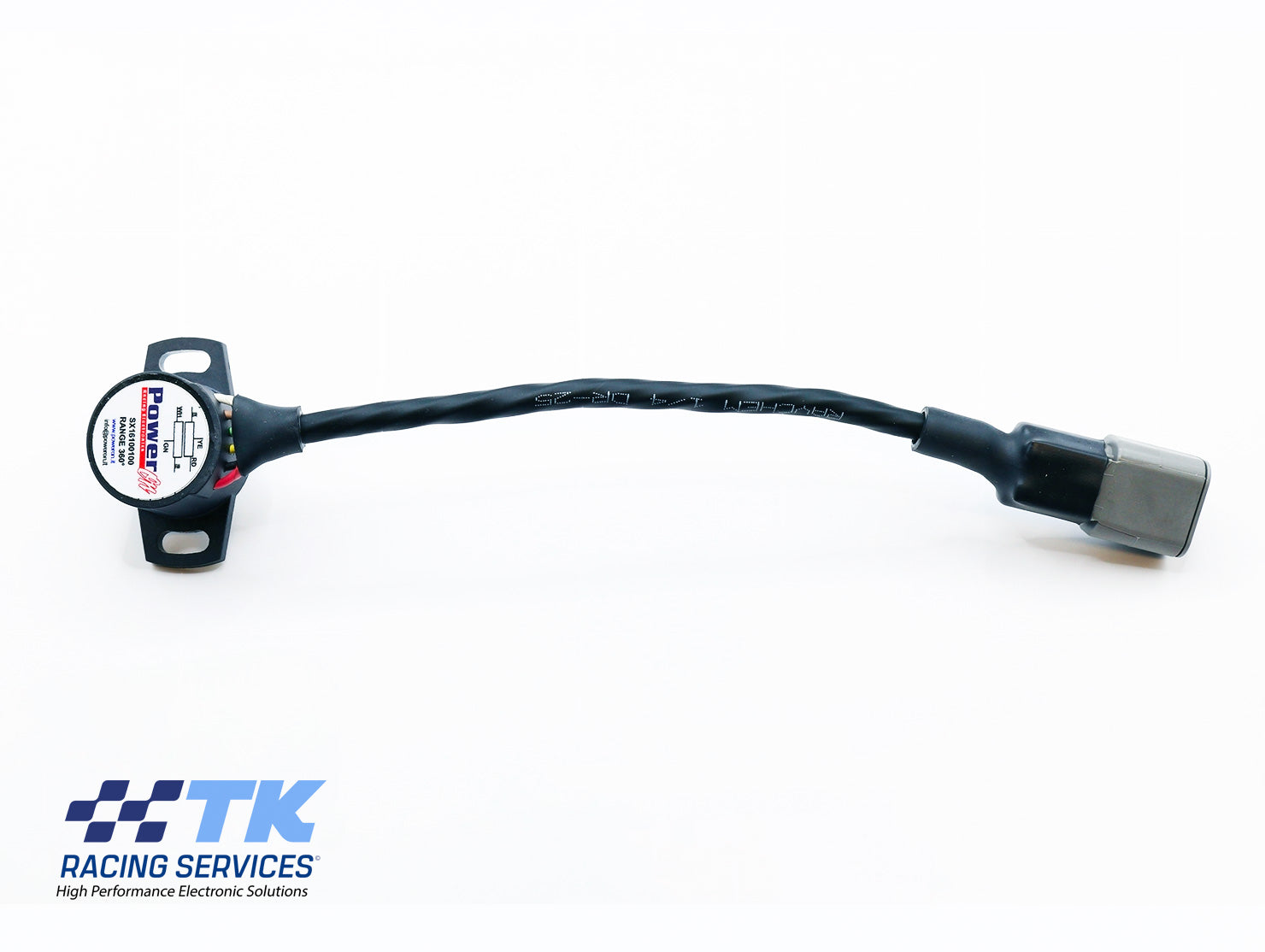

TK1135 - Rotary 360 Degree potentiometer Sensor - Fitted with DTM Connector

Rotary 360 Degree Steering potentiometer to suit the following Tatuus range of chassis including T421 T318 GB3-025

Fitted with a 3 way DTM04-3P female housing and terminated with gold plated pins. Constructed with Industry grade Raychem DR25 sleeving.

Cable Length 180mm - Measured from centre of DTM to exit of sensor.
Sealed to IP67

360 Deg
5v DC
0 to 5V Output

Pinout
Pin - Function
1 - 5V
2 - SIGNAL
3 - GND

Other connectors and pinouts are available on request, drop us a message, we will be happy to help.
