TK1125 - Variohm 10 Bar Gauge Pressure Sensor 12v supply - Sureseal Version

Ideal for applications such as Gear Shift, oil and fuel pressure monitoring

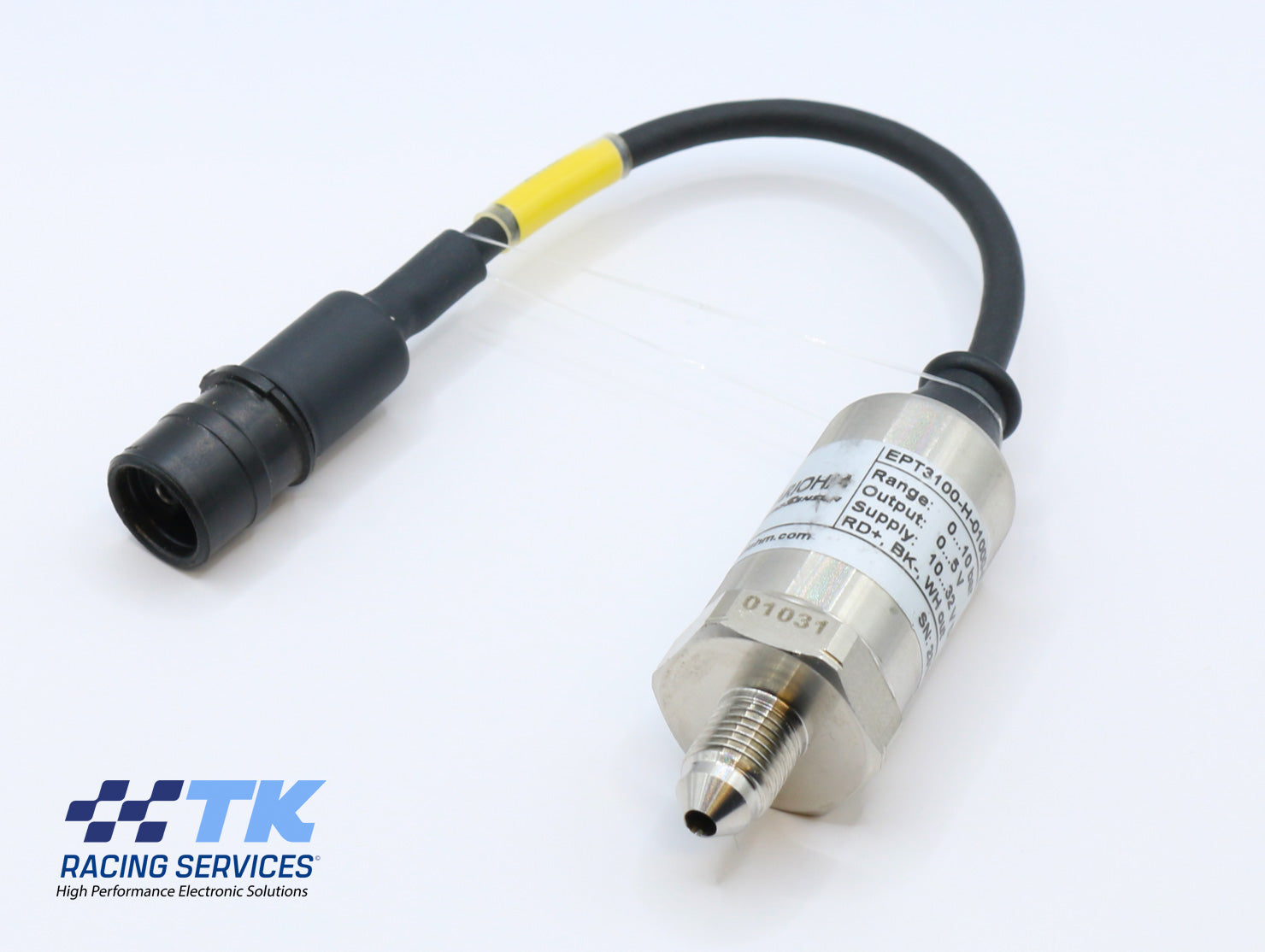

Variohm EPT3100-H-01000-B-4-A sensor Fitted with Large 3 way male ITT Cannon Surreseal connector.

Cable Length 150mm - Measured from centre of Sureseal connector to exit of sensor. Stainless housing.

10 Bar Sealed Gauge
12V Supply
0V to 5V Output
Dash 3 thread - 3/8"-24UNF (9.5mm)
Body Diameter - 22mm (at widest point)
Body Length - 42mm (not including sensor boot)

Pinout
Pin - Function
1 - 12V
2 - SIGNAL
3 - GND

Other connectors and pinout options are available, drop us a message, we will be happy to help.
