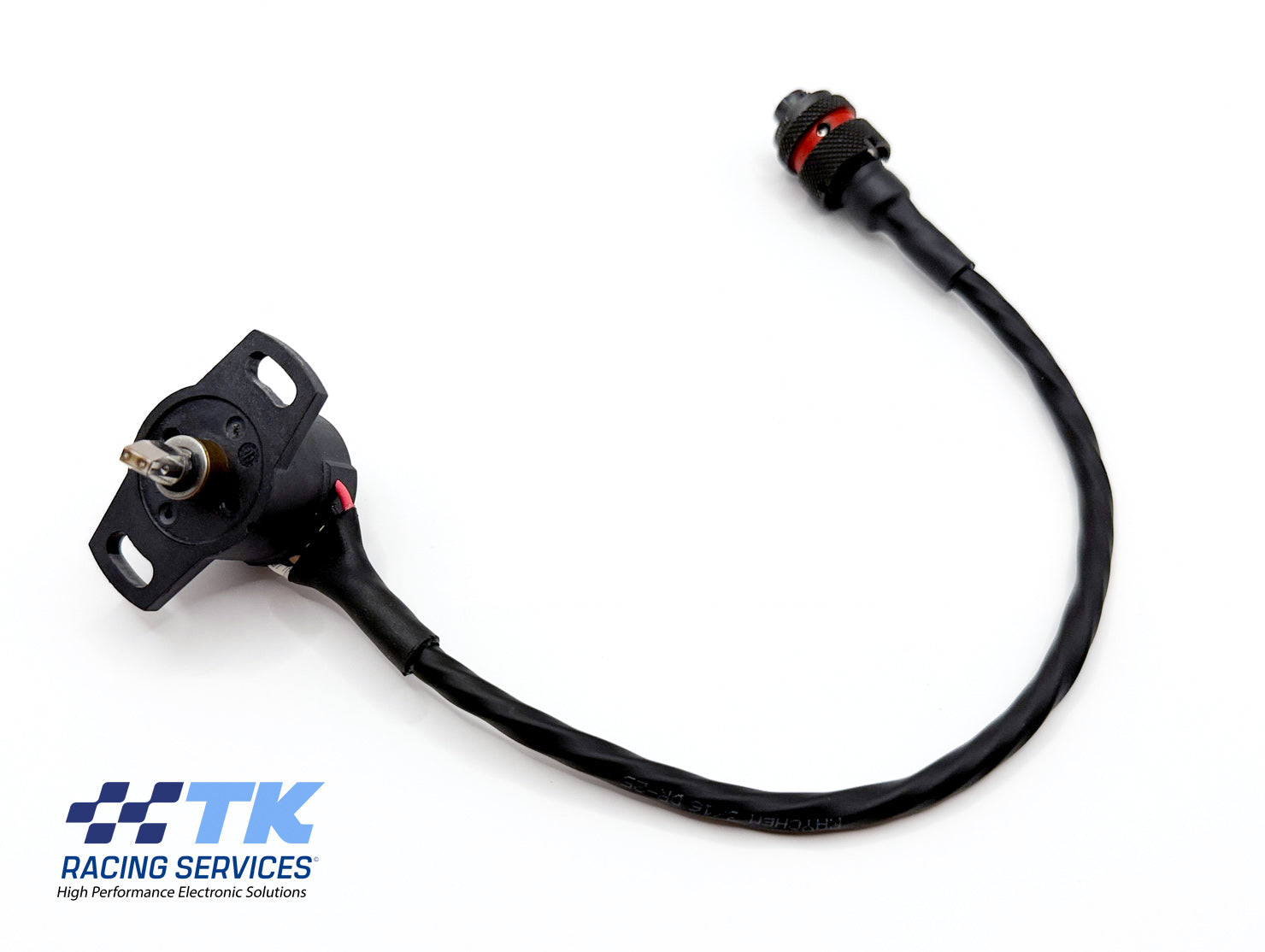

TK1121 - Throttle Pedal Position Sensor - rPedal

Throttle Pot (Potentiometer) to suit many of the Tatuus range of chassis including MSV-022 GB4, T421 F4 Gen 2, T014 F4 Gen 1, T318 Formula Regional and GB3-025
Fitted with a Military spec Sourai 8STA6-08-35PN connector.

Cable Length 260mm - Measured from exit of sensor to rear of connector.

5v DC
Dual 0 to 5V Output

Pin - Function
1 - EXTGNDMA1
2 - EXTVREF1 ( 5V )
3 - PEDAL POSITION A
4 - EXTVREF2 ( 5V )
5 - EXTGNDMA2
6 - PEDAL POSITION B

Other connectors and pinouts are available on request, drop us a message, we will be happy to help.
