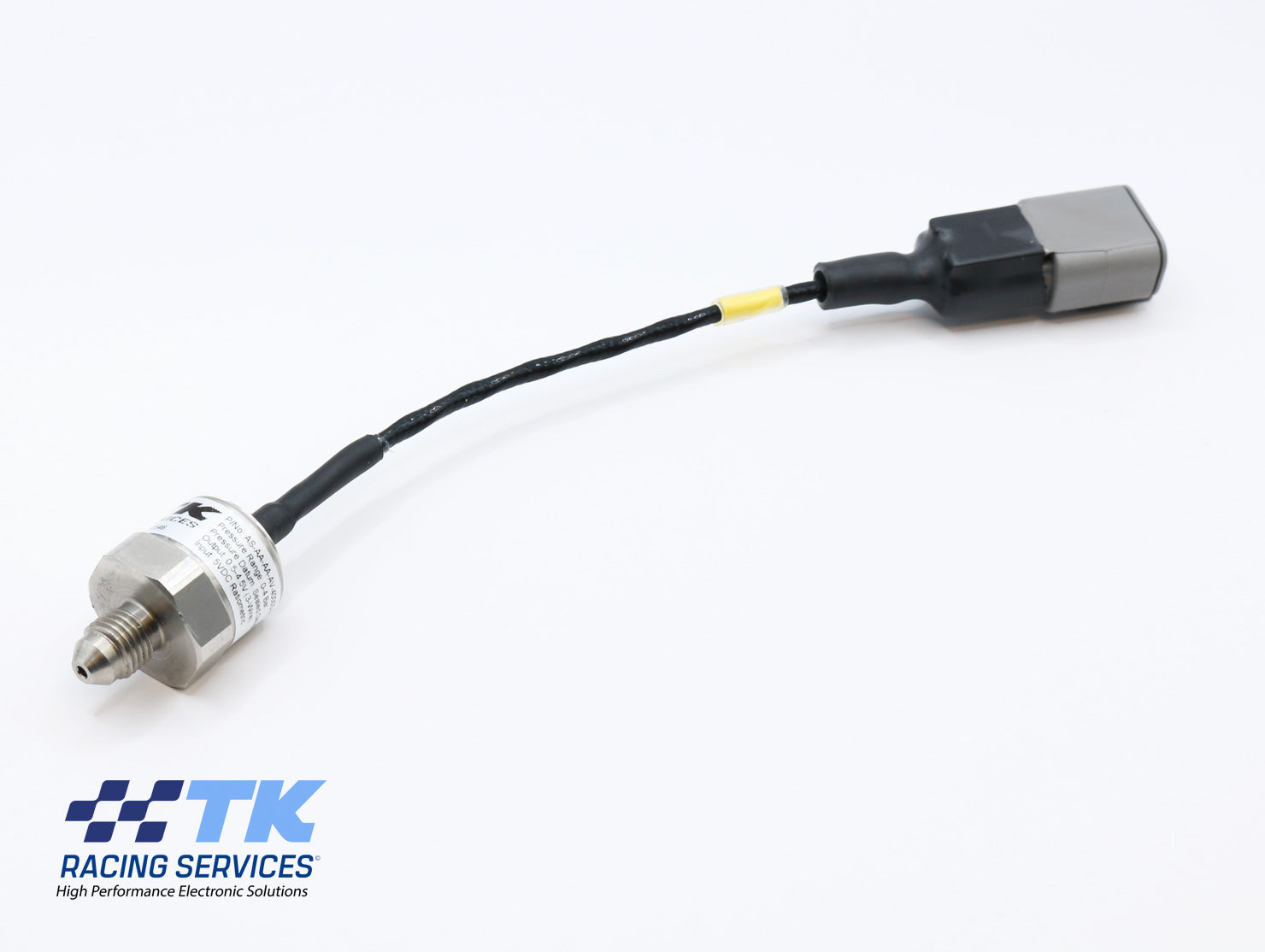

TK1112 - 0-4 Bar Gauge Pressure Sensor - Fitted with DTM Connector

Fitted with a 3 way DTM04-3P female housing and terminated with gold plated pins.
Cable Length 150mm - Measured from centre of DTM to exit of sensor. Stainless housing.

4 Bar Sealed Gauge
5V Supply
0.5V to 4.5V Output
Dash 3 thread - 3/8"-24UNF (9.5mm)
Body Diameter - 21mm (measured at widest point)
Body Length - 21mm (not including sensor boot)

Pin - Function
1 - GND
2 - SIGNAL
3 - 5V

Other connectors and pinout options are available, drop us a message, we will be happy to help.
