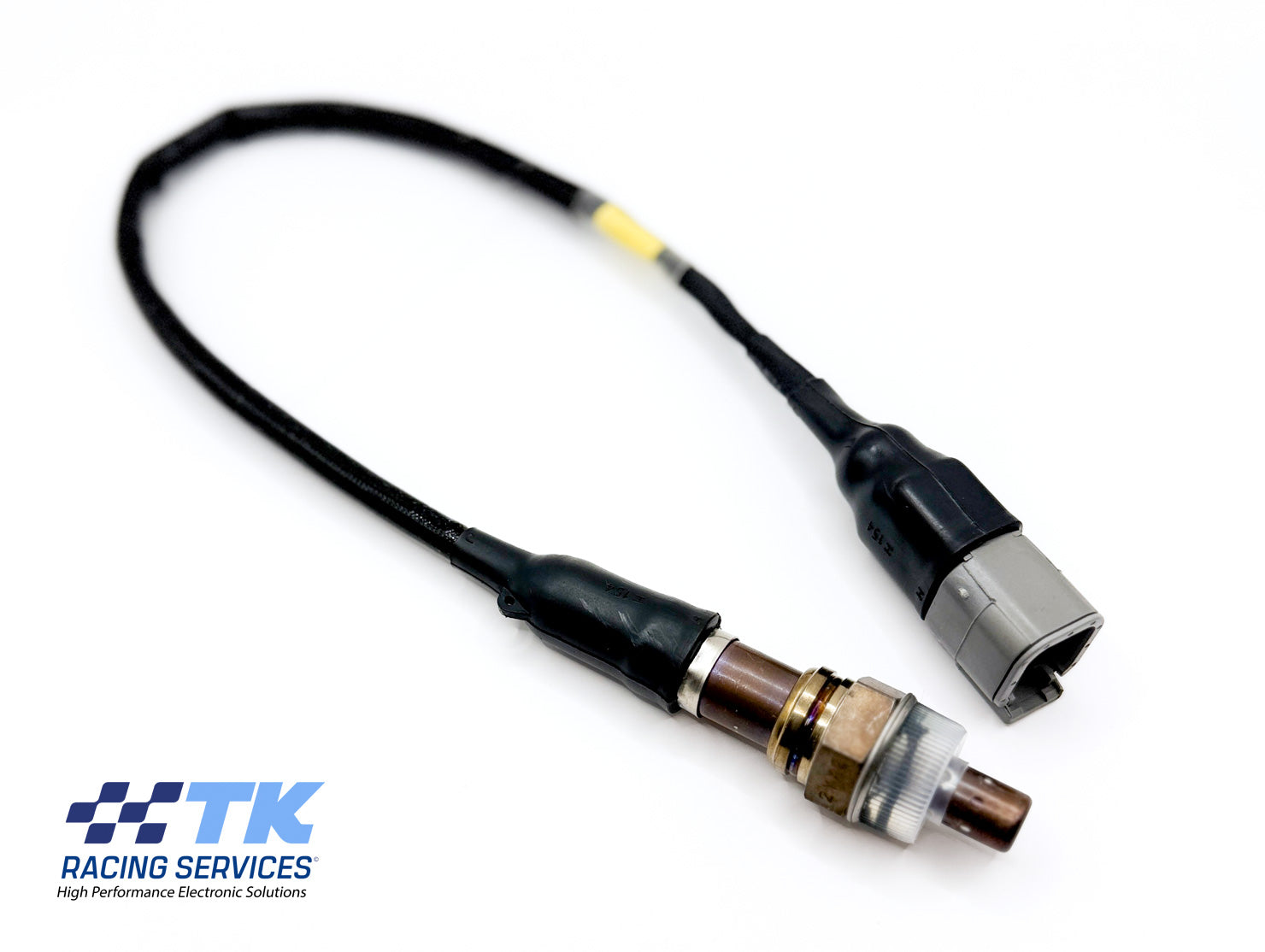

TK1054 - Pectel/Cosworth Lambda Sensor - Fitted with DTM Connector

Lambda Sensor to suit the Pectel range of ECU's.
Genuine NTK Wide Band Lambda Sensor.

NOTE - ECU needs to be able to be set to:
Internal Lambda One/Two Sensor type - NTK_BAND_20

Fitted with a 6 way DTM04-6P female housing and terminated with gold plated pins. Constructed using heat resistent wire and covered with Industry grade DR25 sleeving. We also fit heatproof sleeving over the entire cable length for extra cable protection.
Raychem boots are used both DTM and sensor ends to provide structural integrity.

Cable Length 450mm - Measured from centre of DTM to exit of sensor.

Pinout
Pin - Function
1 - 12V
2 - Lambda Heater
3 - Lambda GND
4 - Lambda I
5 - Lambda V

Other connectors and pinout options are available, drop us a message, we will be happy to help.
