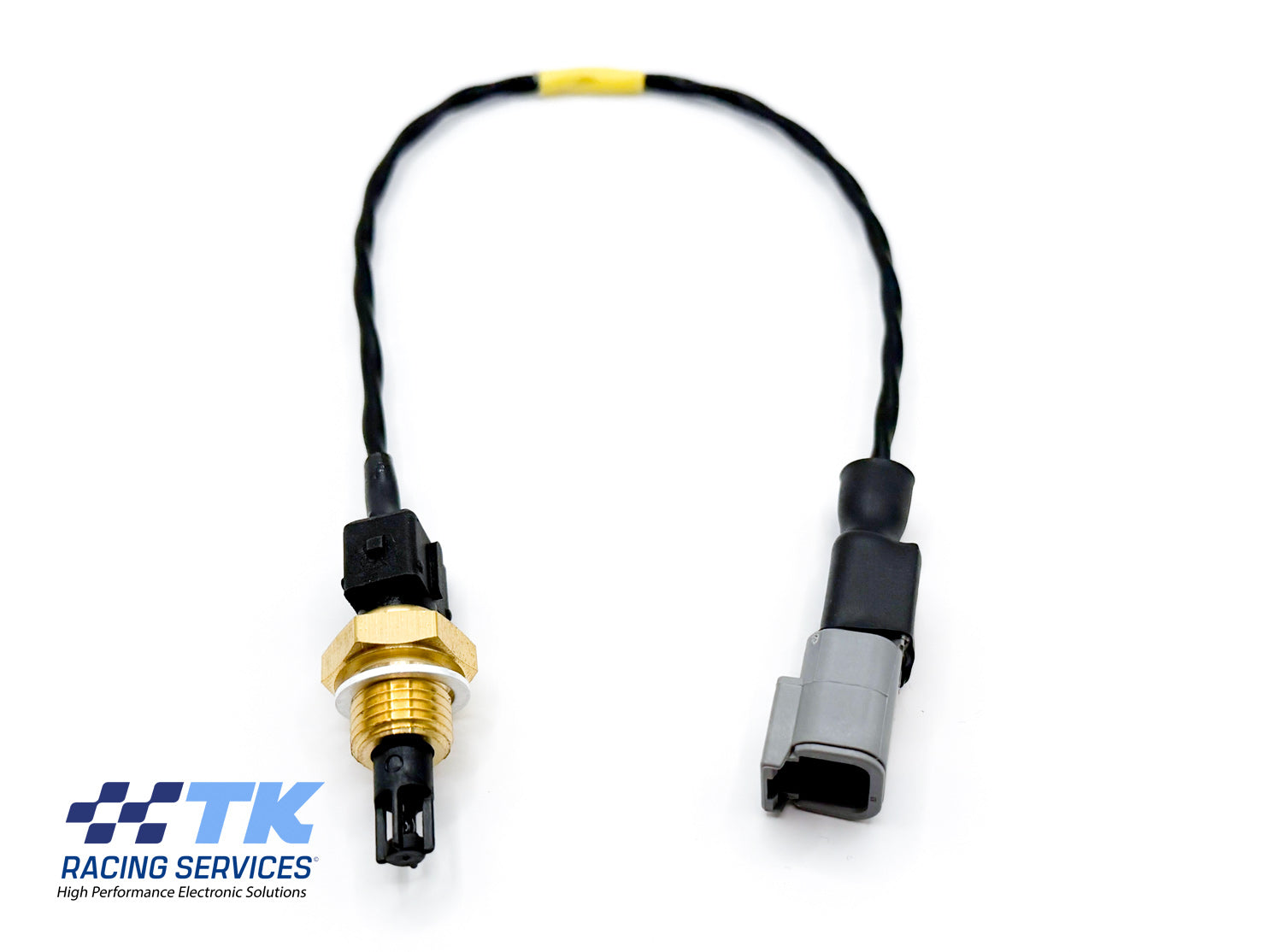

TK1039 - WAS016 Air Charge Temp Sensor - Fitted with DTM Connector

Genuine Weber WAS016 Air Temp Sensor built as a Harsh Environment HE version.

Potted and fitted with a 2 way DTM04-2P female housing and terminated with gold plated pins. Constructed using Military grade 55A spec wire and covered with Industry grade DR25 sleeving.

Cable Length 200mm - Measured from centre of DTM to exit of sensor.

Pinout
Pin - Function
1 - GND
2 - SIG

We can also fit GTB-50 spiral wrap which is a PTFE wrap rated to 260deg C for extra cable protection for a small extra cost.

Other connectors and pinout options are available, drop us a message, we will be happy to help.
