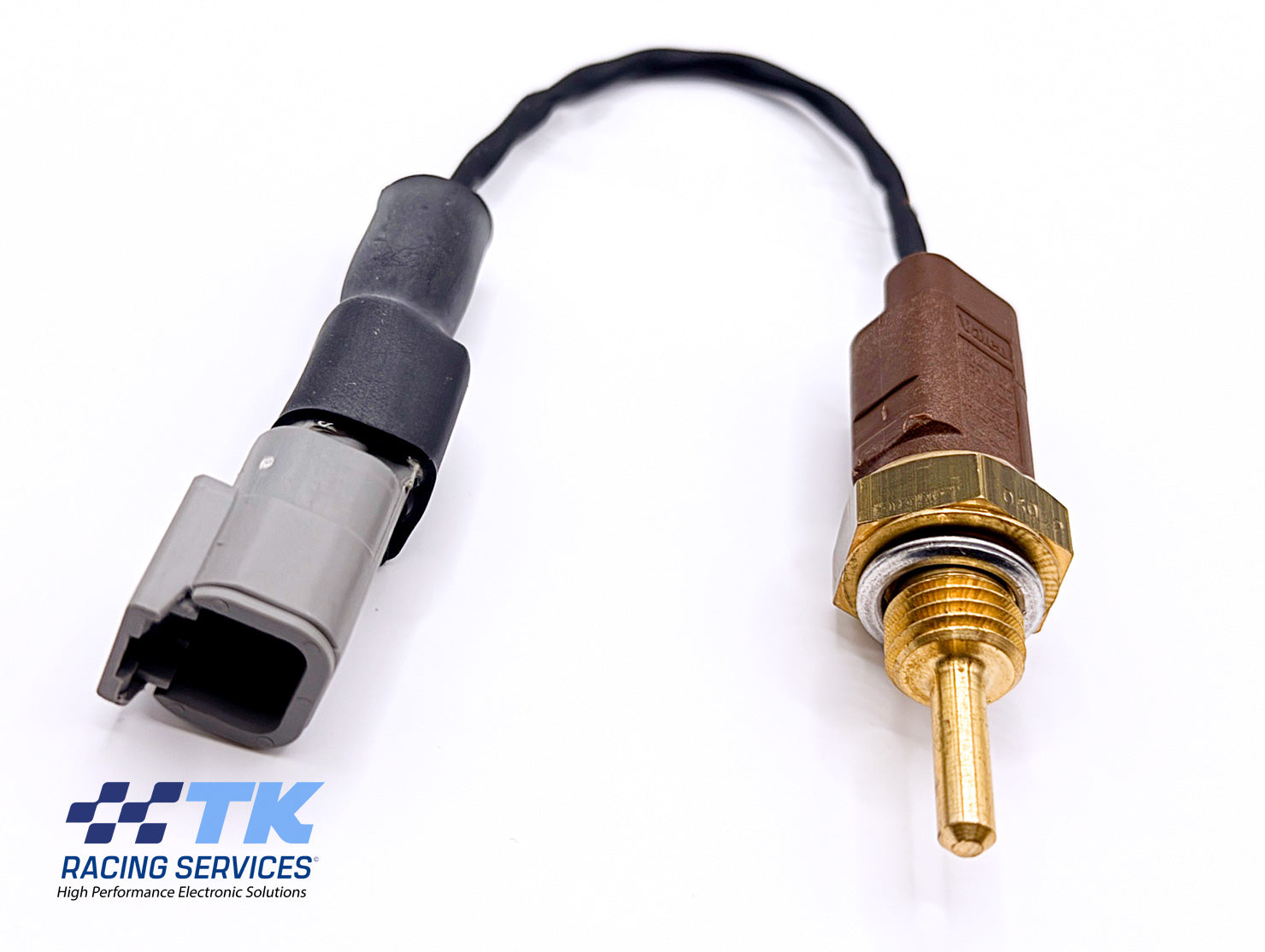

TK1034 - Valeo Oil Temp Sensor - Fitted with DTM Connector

Valeo Oil temperature sensor to fit the Tatuus F4 Gen 1 T014 and F4 Gen 2 T421 Fiat Arbarth powered engines.
Potted and fitted with a 2 way DTM04-2P female housing and terminated with gold plated pins. Over-sleeved with DR25 heat shrink tubing for added cable protection.
Cable Length 150mm - Measured from centre of DTM to exit of sensor.

Pinout
Pin - Function
1 - SIGNAL
2 - GND

Other connectors and pinout options are available, drop us a message, we will be happy to help.
