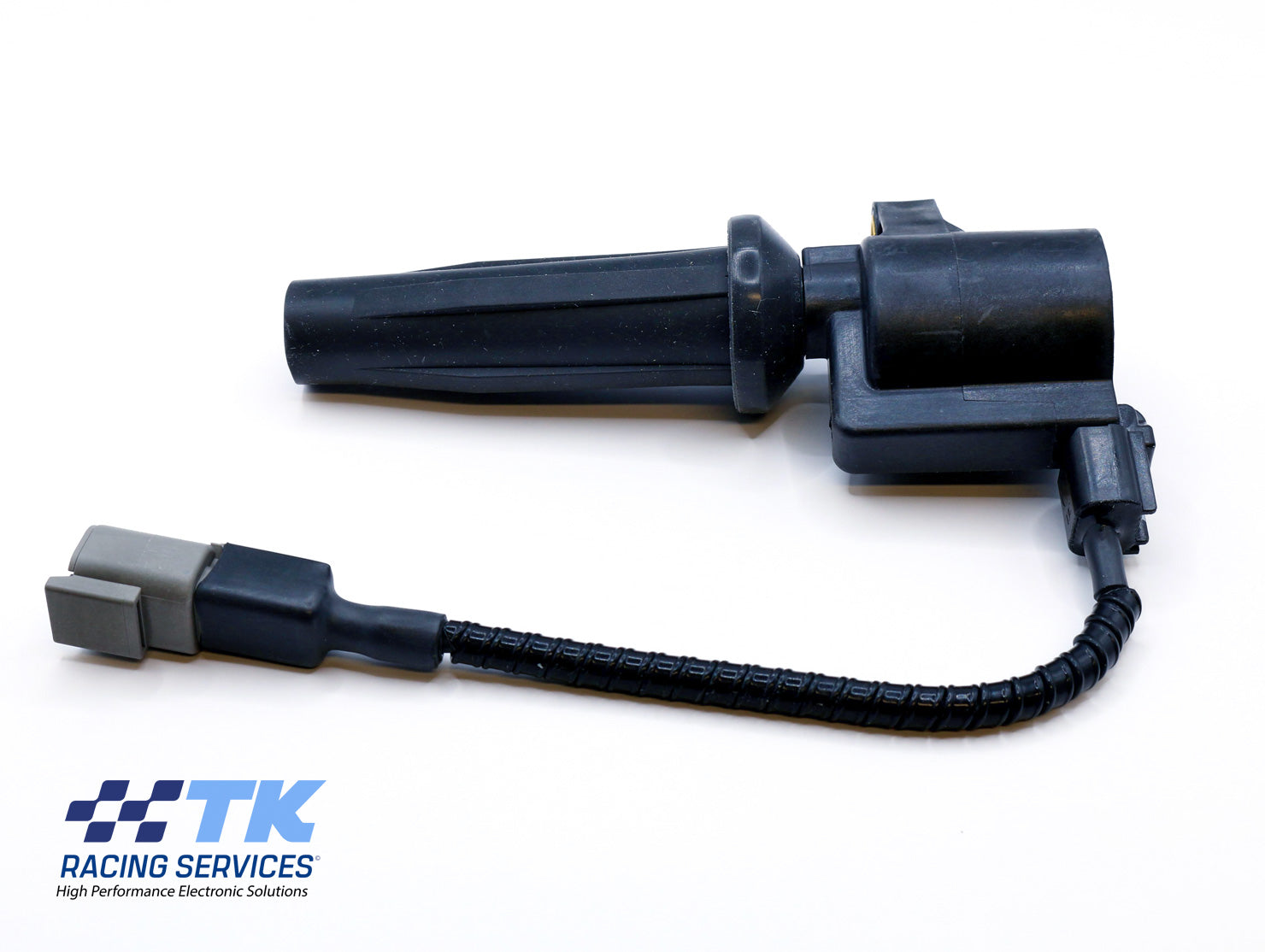

TK1028 - Ford Duratec Coil Pack Assy - Fitted with DTM Connector

Ford Part - 4M5E-12A366-AA (5047437)
Harsh Environment (HE) spec Ford Duratec coil Pack

Potted and fitted with a 2 way DTM04-2P female housing and terminated with gold plated pins. Constructed using Military grade 55A spec wire and covered with Industry grade DR25 sleeving. We also fit GTB-50 spiral wrap which is a PTFE wrap rated to 260deg C for extra cable protection.

Cable Length 150mm - Measured from centre of DTM to exit of coil pack.

Pin - Function
1 - SIG/GND
2 - 12V

Other connectors and pinout options are available, drop us a message, we will be happy to help.
