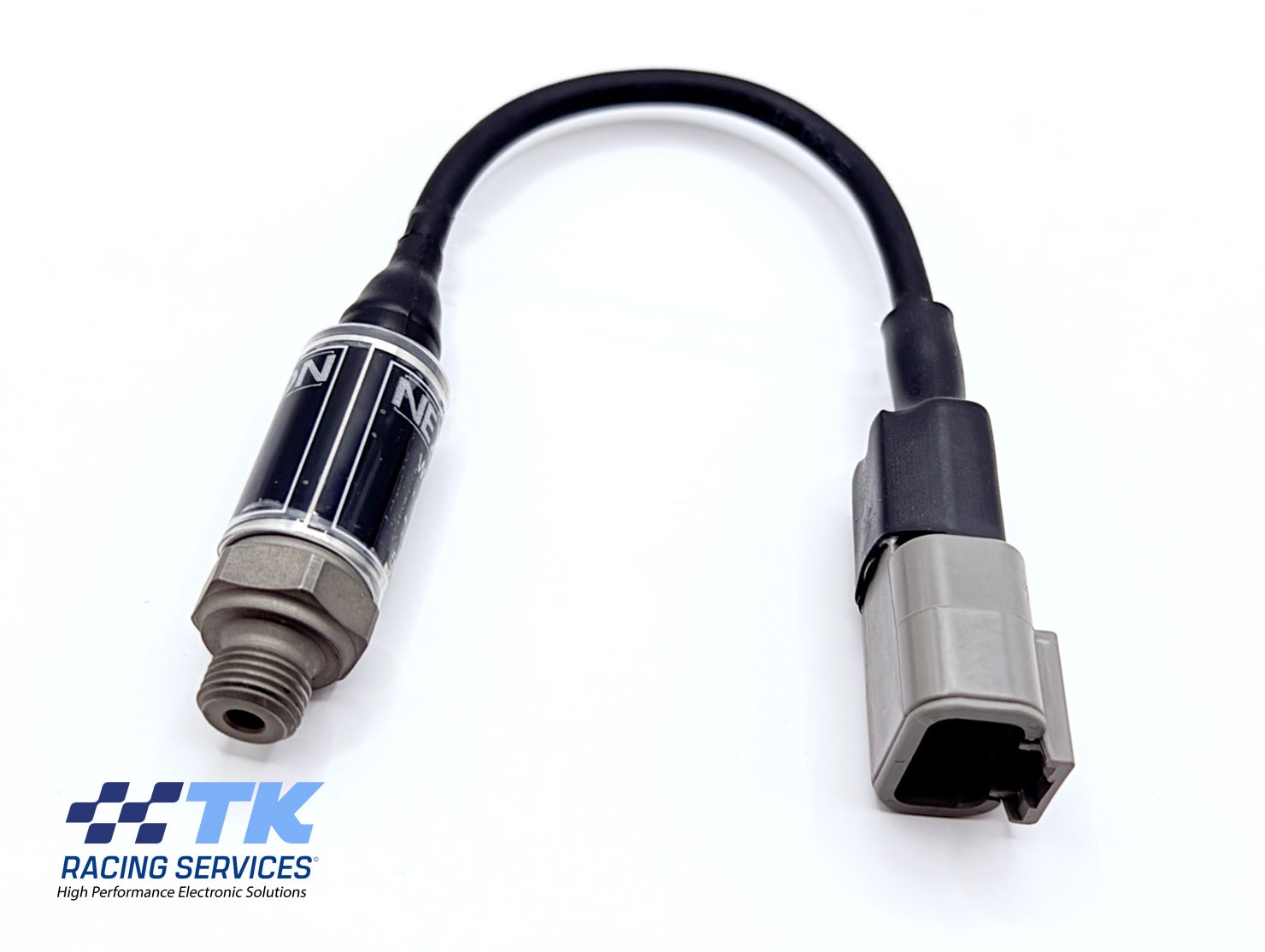

TK1019 - 100 Bar Compact Pressure Sensor - Fitted with DTM Connector

Fitted with a 3 way DTM04-3P female housing and terminated with gold plated pins. Over-sleeved with Polyolefin heat shrink tubing for added cable protection.
Cable Length 150mm - Measured from centre of DTM to exit of sensor.

100 Bar Sealed Gauge
5V Supply
0.5V to 4.5V Output
M10 x 1 thread
Body Diameter - 16.6mm
Body Length - 45mm (not including sensor boot)

Pinout
Pin - Function
1 - 5V
2 - SIGNAL
3 - GND

Other connectors and pinout options are available, drop us a message, we will be happy to help.
