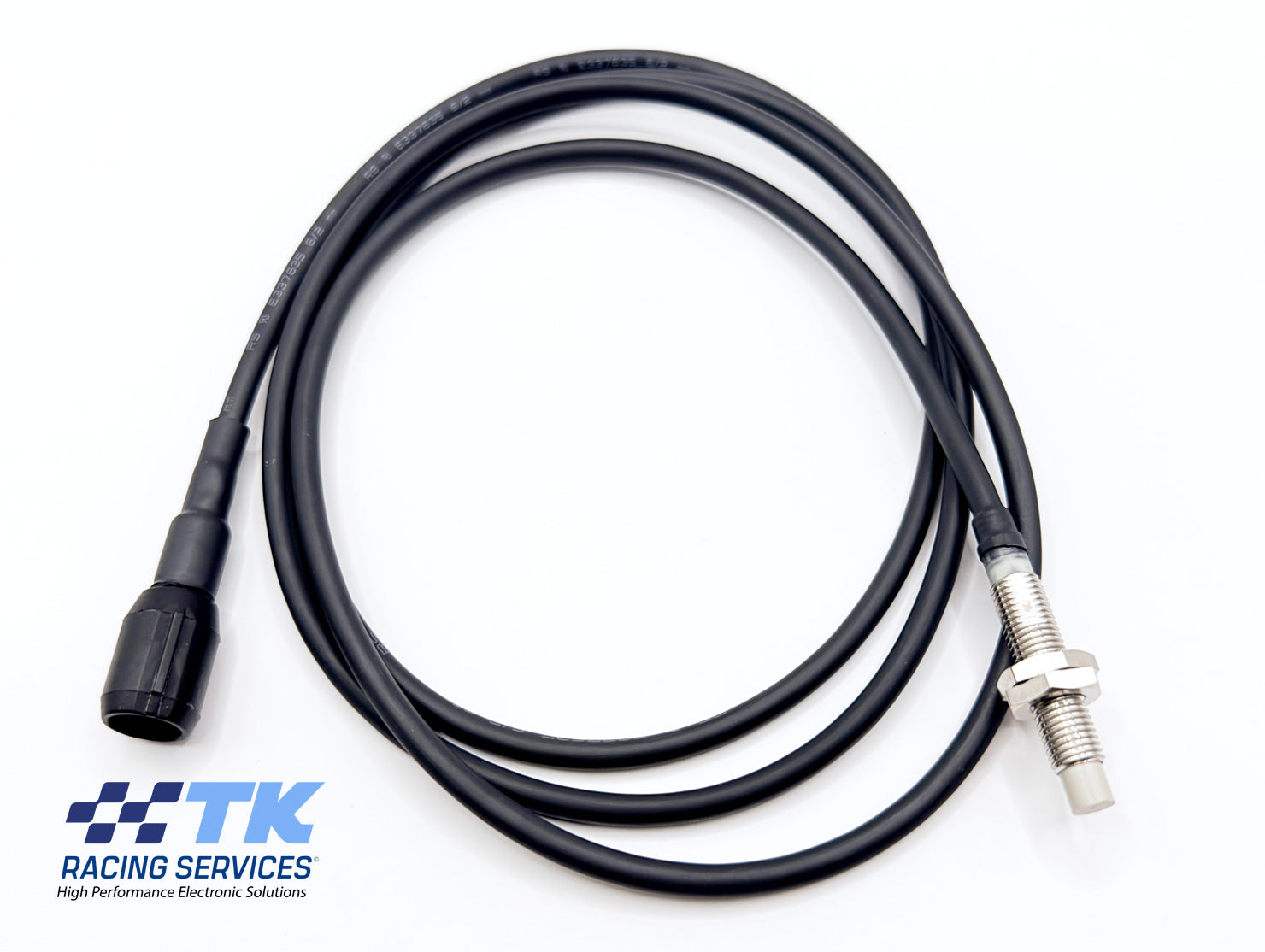

TK1014 - Stack Compatible Wheelspeed Sensor - ST670

Stack Compatible Wheel Speed Sensor. Suitable for all Stack Instruments which require a ST670 speed sensor.

Replacement Wheelspeed Sensor for the Stack range of Display/Loggers that use a Stack ST670 sensor.

4mm sensing range - We recommend mounting the tip 2mm from the ferrous target. Sensor features a 360deg status light at the rear to tell you it is detecting a trigger.

Heat shrunk the full length of the cable to protect it from stones, debris and abrasions.

8mm thread steel cased sensors - Supplied with fixing nuts.

3 wire sensor fitted with the original standard stack 4 pin Mini Sureseal connector, fully compatible with your Stack system.

Pinout
Pin 1 - Signal
Pin 2 - N/C
Pin 3 - 12V
Pin 4 - GND
