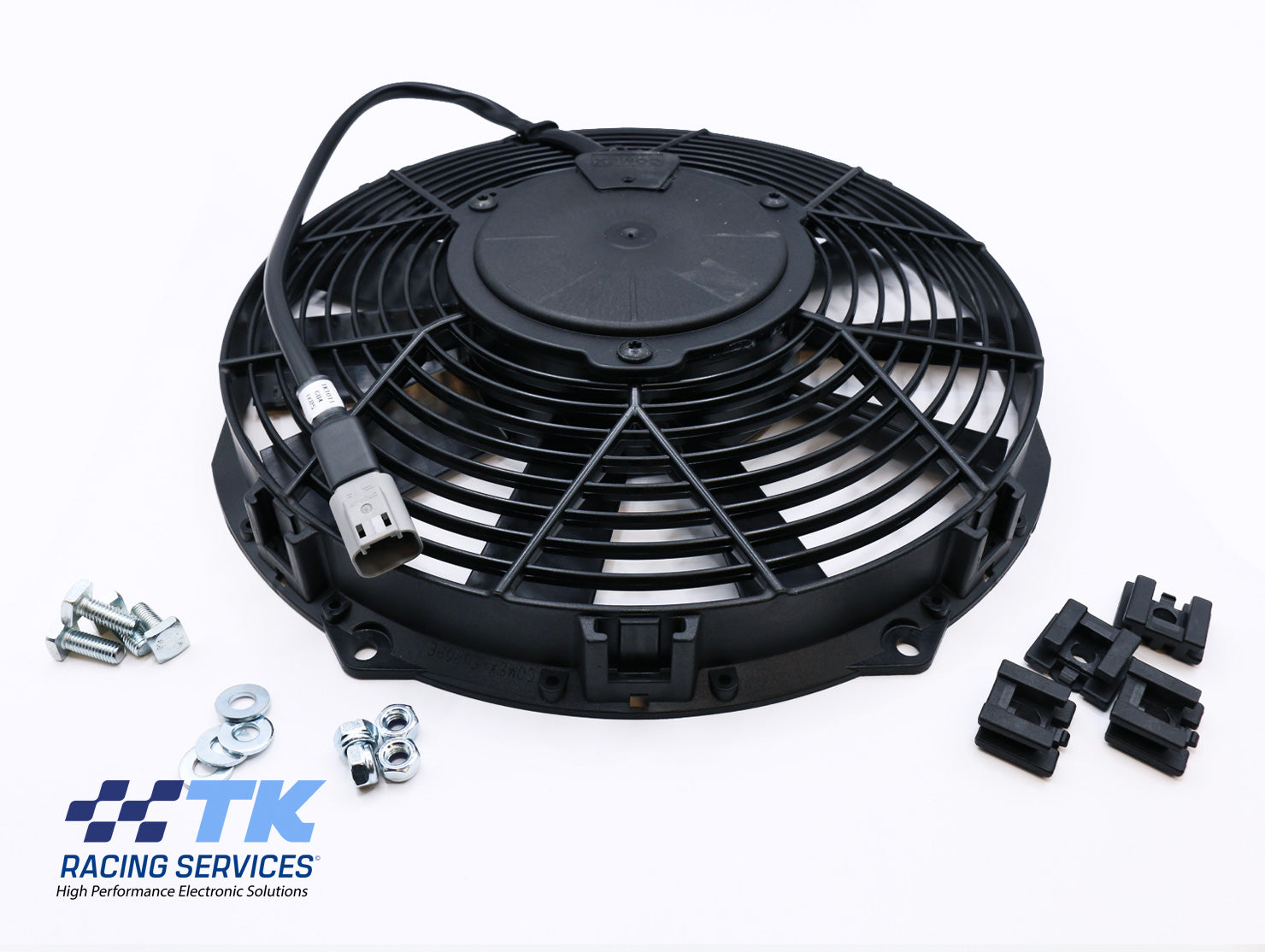

TK1011 - Comex 10" Cooling Fan Kit - STD Power - Fitted with DT Connector

Terminated COMEX Axial high performance slimline fan with a long-life span. The motor is fitted with quality bearings and is dust and waterproof sealed to IP68 Standard.

12V Supply
Standard Power Version
10" (255mm) Suction Fan
Supplied with 4 off M6 mounting feet (FF0018)

Fitted with a 2 way DTP04-2P female housing and terminated with gold plated pins.
Cable Length 300mm - Measured from edge of fan to middle of DTP connector.

Pinout
Pin - Function
1 - 12V
2 - GND

Other connectors and pinout options are available, drop us a message, we will be happy to help.
